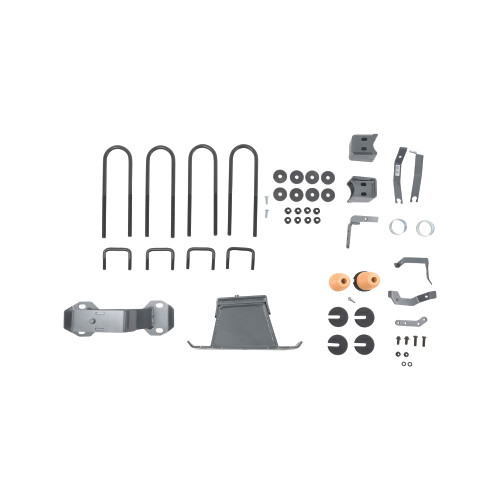

2 INCH LIFT KIT | HANDLING KIT (5200-6000LBS AXLE RATING) - 155253HK

Designed for those who seek more from every mile, the Belltech 2" lift kit transforms your 2019–2022 Mercedes-Benz Sprinter 2500 4WD into a more capable and adventure-ready platform. The system features Belltech's precision-engineered, load-adjustable coilovers that support a 6,000-lb. rear axle rating while increasing wheel travel, improving ride control, and providing confident handling across a variety of terrains. The enhanced suspension setup also helps provide greater stability and control in challenging driving conditions, including windy environments where Sprinter vans can be more susceptible to crosswinds.

Heavy-duty rear shock frame braces and high-quality hardware reinforce the chassis and provide long-term durability, while the adjustable front and rear sway bars system improves stability and helps reduce body roll. Heavy-duty skid plates provide added protection for critical underbody components against rocks, ruts, and other trail hazards. Whether you're building an overland camper or a capable adventure-ready work van, the Belltech 2" lift kit delivers the strength, protection, and performance needed to take your Sprinter beyond the pavement.

Front Features

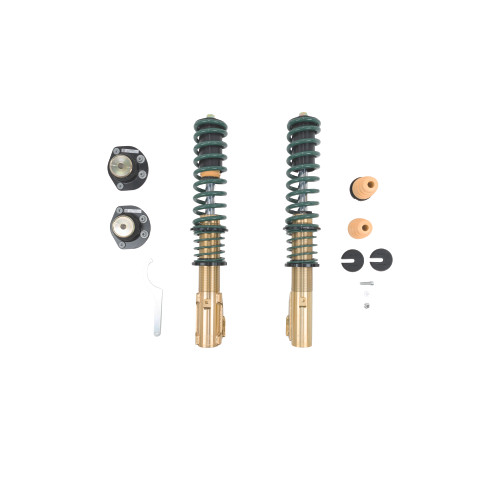

• Load Adjustable Coilovers
• Delivered pre-assembled with new top mounts
• 2" (50 mm) of lift to optimize your Sprinter's stance and ride height for your build, load, and adventure needs
• 40 N/mm spring rate for comfort, control, and capability

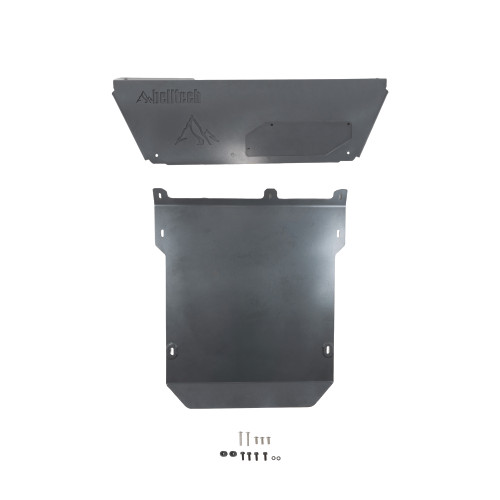

• Front Skid Plates
• Finished in a high-quality metallic powder coat for superior corrosion resistance
• Built from 3/16” steel for exceptional strength and long-term durability
• Precision-designed fitment with OEM-quality mounting hardware for a straightforward, bolt-on installation

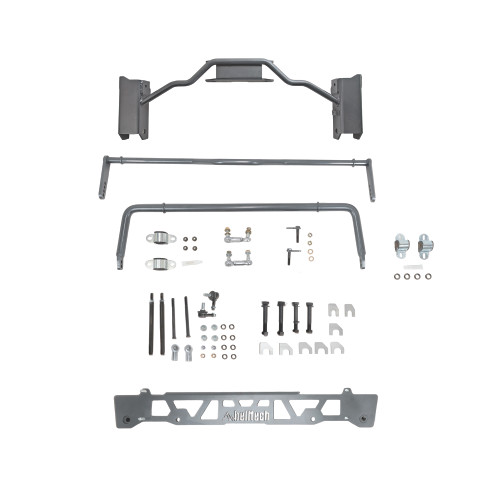

• Front Sway Bar
• A tandem sway bar system crafted from premium 1-3/8” solid steel for exceptional strength and long-term durability
• Two settings of sway bar adjusted to achieve the desired roll stiffness
• Adjustable end links to set the proper sway bar angles and match the vehicle suspension setup

Rear Features

• Load Adjustable Coilovers
• Delivered pre-assembled with new mounting points for coilover braces
• Leveling adjustment to fine-tune your Sprinter's stance with support for rear axle
• 80 N/mm spring rate for heavier payloads and towing


• Upper and Lower Shock Braces
• Constructed with 1/4" thick steel that is powder coated for strength and corrosion resistance
• Repositions the rear shock mounting points to support additional suspension travel
• The upper braces clamp over the frame rails to reinforce areas known to be weak, adding strength and stability to the chassis


• Rear Lift Blocks
• Height adjustable lift block system for a 2” or 3” application
• Finished in a high-quality metallic powder coat for superior corrosion resistance
• Extended length round U-bolts and anti-axle wrap squared U-bolts are supplied to properly fasten with the original U-bolt mounts


• Adjustable Bump Stop System
• Progressive-rate polymer foam bump stops provide smooth limit control
• Spacers to adjust the bump stop height to match the lift block setup
• Easy bolt-in solution with supplied high-grade hardware


• Rear Sway Bar
• Constructed from 1” hollow steel for exceptional strength with reduced weight
• Four settings of sway bar adjusted to achieve the desired roll stiffness
• Adjustable end links to set the proper sway bar angles and match the vehicle suspension setup
