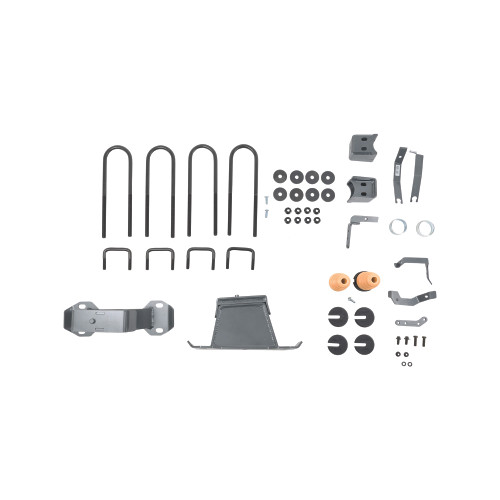

2 INCH LIFT KIT | HANDLING KIT (3600-4400LBS AXLE RATING) - 155251HK

Designed for those who seek more from every mile, the Belltech 2" lift kit transforms your 2018–2022 Mercedes-Benz Sprinter 2500 4WD into a more capable and adventure-ready platform. Belltech's precision-engineered, height-adjustable coilovers let you dial in your ideal ride height while delivering exceptional ride quality, increased wheel travel, and confident handling across any terrain.

Heavy-duty rear shock frame braces and high-quality hardware add chassis rigidity and long-term durability, while the adjustable front and rear sway bar system improves stability and reduces body roll. Heavy-duty skid plates protect critical underbody components from rocks, ruts, and other trail hazards, giving you added confidence when the pavement ends. Whether you're building an overland camper or creating a more capable adventure-ready work van, the Belltech 2" lift kit delivers the performance, protection, and refined ride quality to take your Sprinter farther.

Front Features

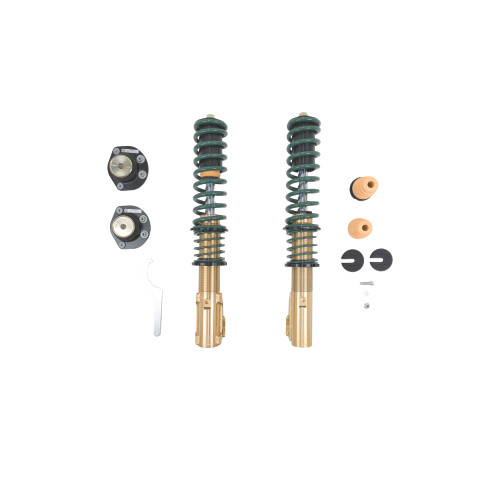

• Height-Adjustable Coilovers
• Delivered pre-assembled with new top mounts
• 2” (50mm) of fine-tuned adjustability; set ride height from 0” to +2”
• 40 N/mm spring rate for comfort, control, and capability


• Front Skid Plates
• Finished in a high-quality metallic powder coat for superior corrosion resistance
• Built from 3/16” steel for exceptional strength and long-term durability
• Precision-designed fitment with OEM-quality mounting hardware for a straightforward, bolt-on installation


• Front Sway Bar
• Crafted from premium 1-3/8” solid steel for exceptional strength and long-term durability
• Two settings of sway bar adjusted to achieve the desired roll stiffness
• Adjustable end links to set the proper sway bar angles and match the vehicle suspension setup

Rear Features

• Height-Adjustable Coilovers
• Delivered pre-assembled with new mounting points for coilover braces
• 2” (50mm) of fine-tuned adjustability; set ride height from 0” to +2”
• 30 N/mm spring rate for payloads, towing, and adventure


• Upper and Lower Shock Braces
• Constructed with 1/4" thick steel that is powder coated for strength and corrosion resistance
• Repositions the rear shock mounting points to support additional suspension travel
• The upper braces are clamped over the frame rails for added reinforcement and a visually rugged enhancement


• Rear Lift Blocks
• Height adjustable lift block system for 1”, 2”, or 3” application
• Finished in a high-quality metallic powder coat for superior corrosion resistance
• Extended length round U-bolts and anti-axle wrap squared U-bolts are supplied to properly fasten with the original U-bolt mounts


• Adjustable Bump Stop System
• Progressive-rate polymer foam bump stops provide smooth limit control
• Spacers to adjust the bump stop height to match the lift block setup
• Easy bolt-in solution with supplied high-grade hardware


• Rear Sway Bar
• Constructed from 1” hollow steel for exceptional strength with reduced weight
• Four settings of sway bar adjusted to achieve the desired roll stiffness
• Adjustable end links to set the proper sway bar angles and match the vehicle suspension setup

Installation Instructions

• Installation Instructions 1
• Installation Instructions 2
• Installation Instructions 3
• Installation Instructions 4
