PERFORMANCE COILOVER KIT PLUS W/ DAMPING ADJUSTABLE COILOVERS/SHOCKS - 1001SPAC

Fits: 2015-2020 Ford F-150 (All Cabs) 2WD/4WD

Lowering Range: Front -1” to -3” / Rear 4"

Outstanding performance, improved handling, and enhanced style are just a few of the upgrades you gain when swapping your OE suspension for Belltech's 2015-2020 Ford F-150 lowering kit. With a front height adjustment of -1" to -3" and the rear -4", you improve the appearance and deliver the ride quality you have been dreaming of.

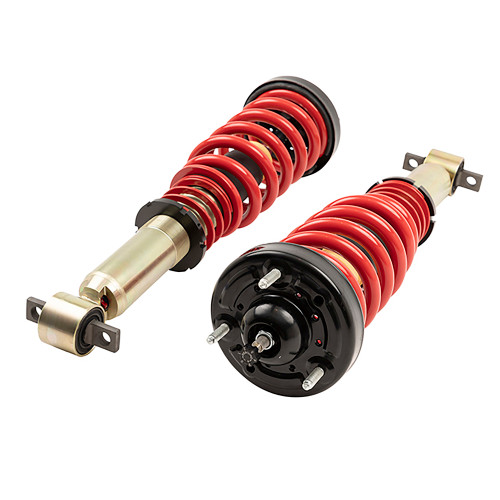

The front suspension includes our robust Belltech lowering adjustable damping coilovers designed using high-quality, multi-functional components that are built to last. Each coilover includes a finely tuned Belltech damper with independently adjustable rebound and compression damping forces. The dampers feature a large, 2.4" (60mm) gold zinc galvanized damper housing for added longevity. The external threads and spring perch offer height adjustability from -1" to -3". We feature a large main spring and smaller helper spring. Both the main spring and the helper spring are made of cold-formed tensile steel and are powder-coated to prevent rust and wear. The coilover uses a progressive rate polymer, open-cell, bump stop for ideal bump stop engagement, and OE style top mounts for simplified installation.

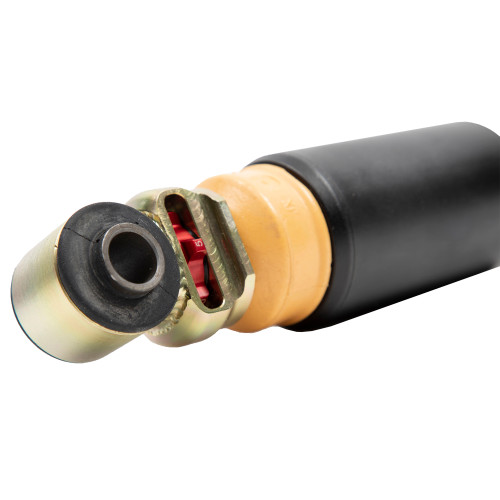

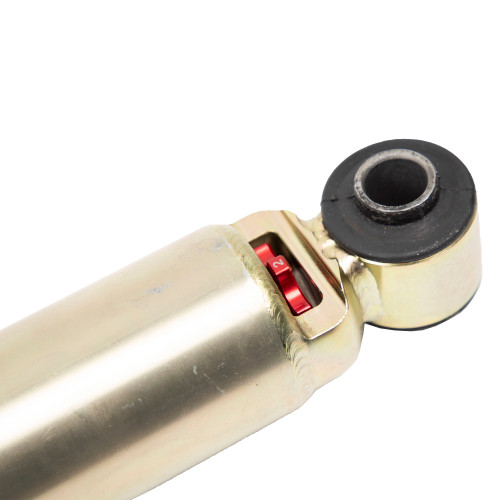

The rear end of the vehicle showcases Belltech Street Performance adjustable damping shocks that are perfectly tuned for increased, customizable refinement of your F-150's ride quality. Belltech Street Performance adjustable shocks feature an advanced low-friction design and are effortlessly tuned with easy-to-set rebound and compression knobs. The rebound adjustment features 18 precise clicks of rebound stage tuning, while the compression showcases 12 clicks of compression stage tuning. With independent adjustments, you can directly influence steering behavior, directional stability, grip, and handling characteristics, producing an individualized and perfected ride.

Like the coilover dampers, our shocks are made with a 2" (55mm) gold zinc galvanized damper housing to increase their lifespans. To achieve -4" in lowering, Belltech includes an easy-to-install flip kit with lift hangers. The flip kit contains high-quality hardware and durable finished components. It seamlessly repositions your axle without interfering with any OE parts.

Give your truck an eye-catching, high-performance upgrade with the Belltech 2015-2020 Ford F-150 Performance Handling Lowering Kit.

• Lowering range: -1" to -3" front and -4" rear
• Complete "ready to install" front height adjustable coilovers
• 18 clicks of rebound stage adjustment (TVR-A) Twin Valve Rebound Adjustable Technology
• 12 clicks of compression stage adjustment (TVC-A) Twin Valve Compression Adjustable Technology
• Large 2.4" (60mm) Street Performance dampers at the front
• Rear Street Performance 2" (55mm) damping adjustable shocks
• Galvanized steel shock bodies
• High-quality flip kit with lift hangers
• Customizable performance and handling
• Easy installation

Installation Instructions

• Installation Instructions 1
• Installation Instructions 2
