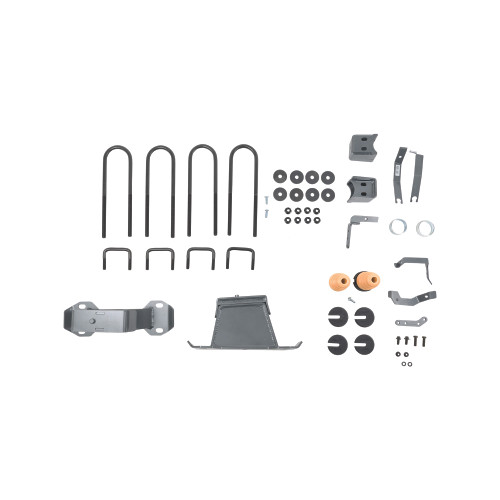

2 INCH LIFT KIT | COILOVER KIT (5200-6000LBS AXLE RATING) - 155263TPC

Built to take your 2023+ Mercedes-Benz Sprinter 2500 AWD beyond the pavement, the Belltech 2" lift kit delivers the ideal balance of rugged off-road capability and refined on-road comfort. Featuring Belltech's precision-engineered, height-adjustable coilovers, this system lets you dial in your ideal ride height while delivering exceptional ride quality, increased wheel travel, and confident handling on any terrain, with support for a 6,000-lb. rear axle rating. Heavy-duty rear shock frame braces and high-quality hardware provide enhanced chassis rigidity and lasting durability, while heavy-duty skid plates protect critical underbody components from rocks, ruts, and trail hazards. Whether you're building an overland camper or preparing your work van for the road ahead, Belltech delivers exceptional engineering, ride quality, and confident performance wherever the journey takes you.

Front Features

• Height-Adjustable Coilovers
• Delivered pre-assembled with new top mounts
• 2” (50mm) of fine-tuned adjustability; set ride height from 0” to +2”
• 40 N/mm spring rate for comfort, control, and capability

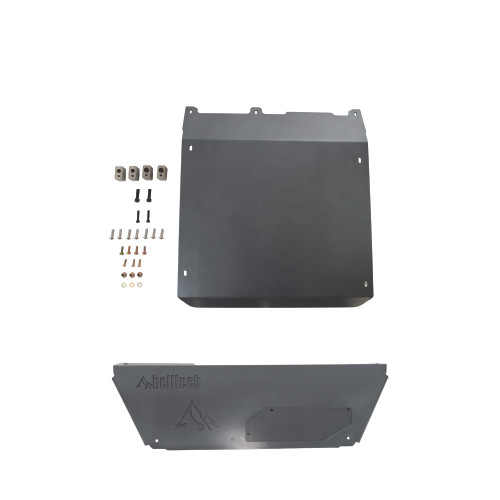

• Front Skid Plates
• Finished in a high-quality metallic powder coat for superior corrosion resistance
• Built from 3/16” steel for exceptional strength and long-term durability
• Precision-designed fitment with OEM-quality mounting hardware for a straightforward, bolt-on installation

Rear Features

• Height-Adjustable Coilovers
• Delivered pre-assembled with new mounting points for coilover braces
• 2” (50mm) of fine-tuned adjustability; set ride height from 0” to +2”
• 80 N/mm spring rate for heavier payloads and towing


• Upper and Lower Shock Braces
• Constructed with 1/4" thick steel that is powder coated for strength and corrosion resistance
• Repositions the rear shock mounting points to support additional suspension travel
• The upper braces are clamped over the frame rails for added reinforcement and a visually rugged enhancement


• Rear Lift Blocks
• Height adjustable lift block system for 1”, 2”, or 3” application
• Finished in a high-quality metallic powder coat for superior corrosion resistance
• Extended length round U-bolts and anti-axle wrap squared U-bolts are supplied to properly fasten with the original U-bolt mounts


• Adjustable Bump Stop System
• Progressive-rate polymer foam bump stops provide smooth limit control
• Spacers to adjust the bump stop height to match the lift block setup
• Easy bolt-in solution with supplied high-grade hardware

Installation Instructions

• Installation Instructions 1
• Installation Instructions 2
• Installation Instructions 3
