1988-1998 Chevy C1500 Coilover Conversion
and 4-Link Kit
Belltech has been building lowering kits for the Chevy OBS since the late 80s and few vehicles have played a bigger role in our legacy. Following the celebration of our 40th anniversary, we set out to create a modern suspension solution for the truck that helped put us on the map.

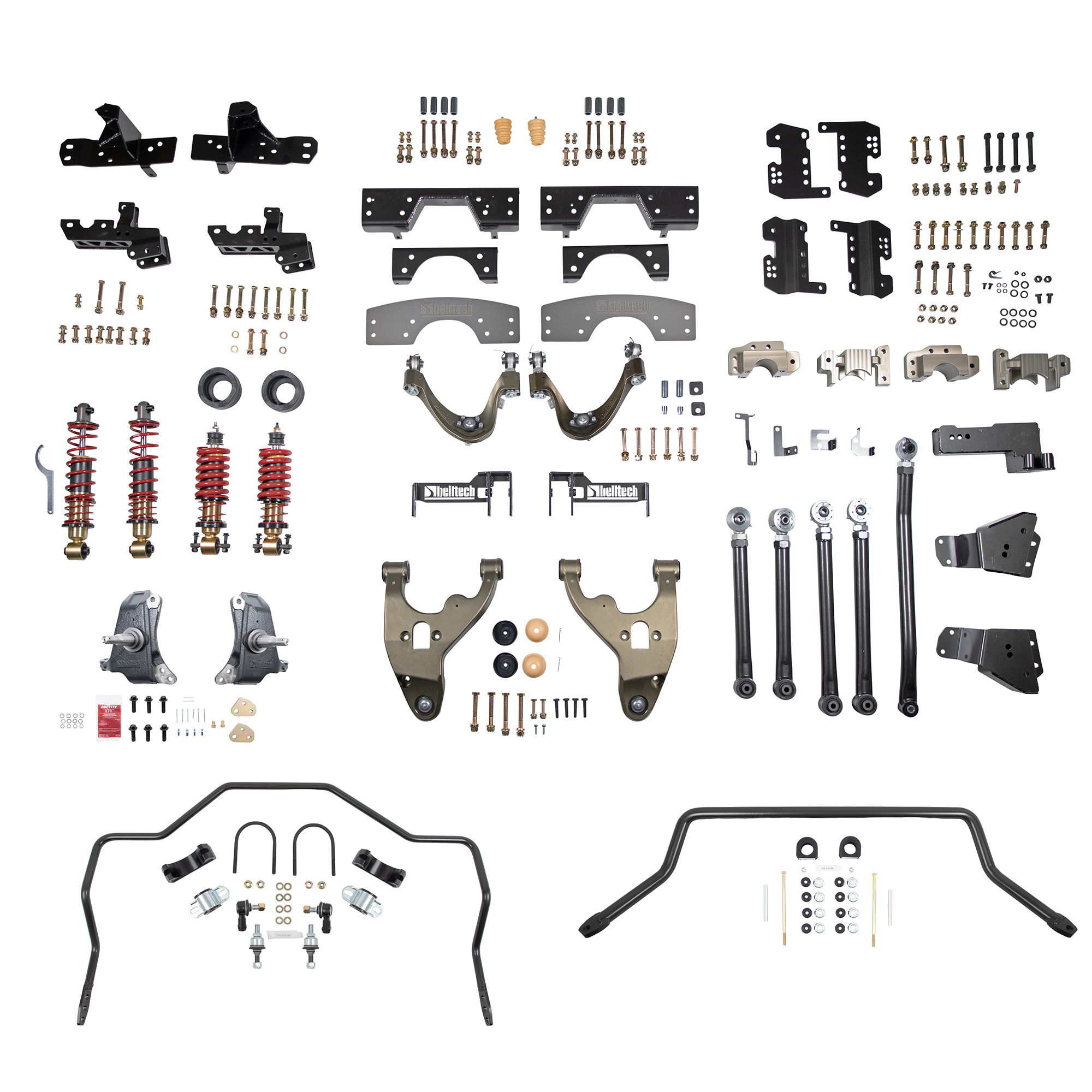

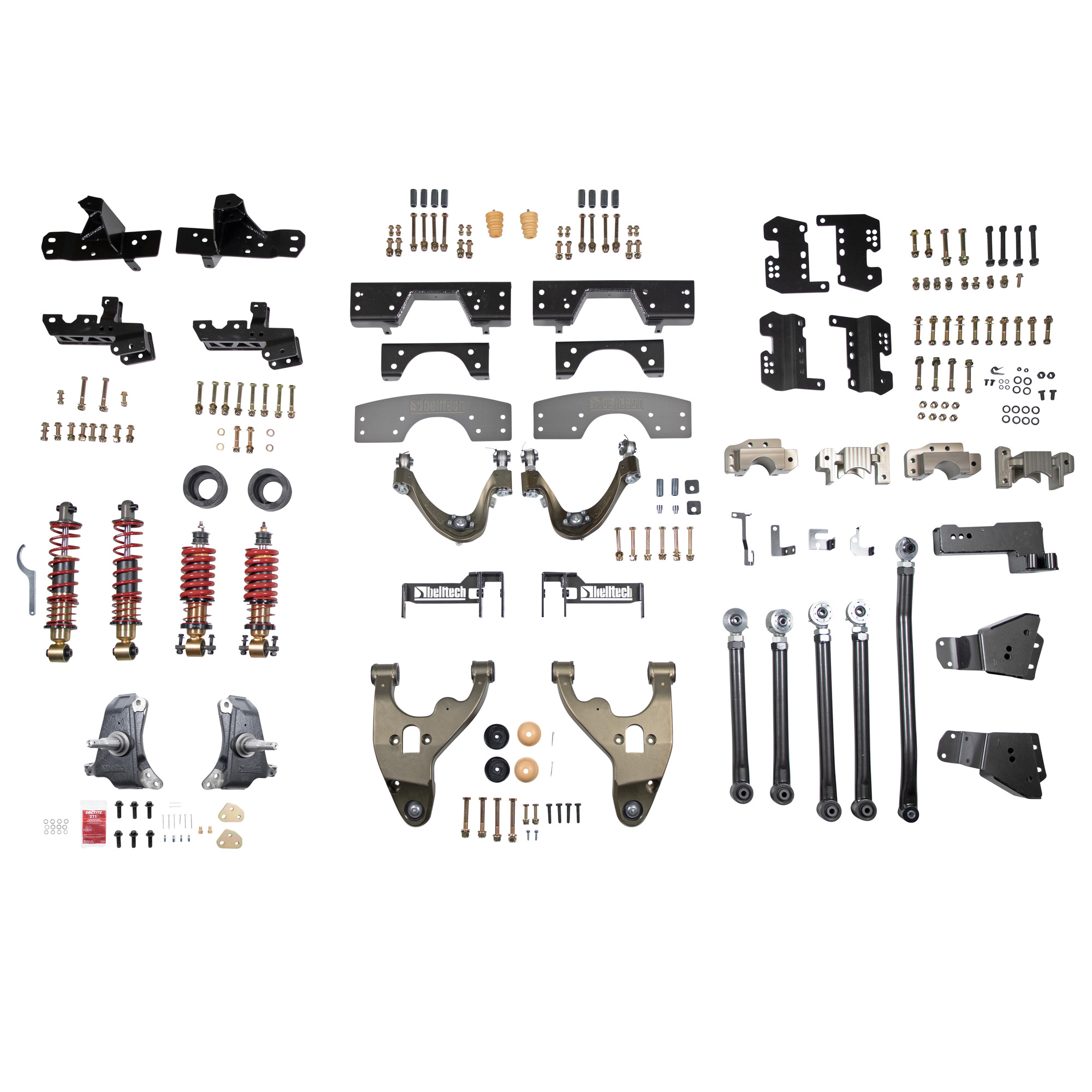

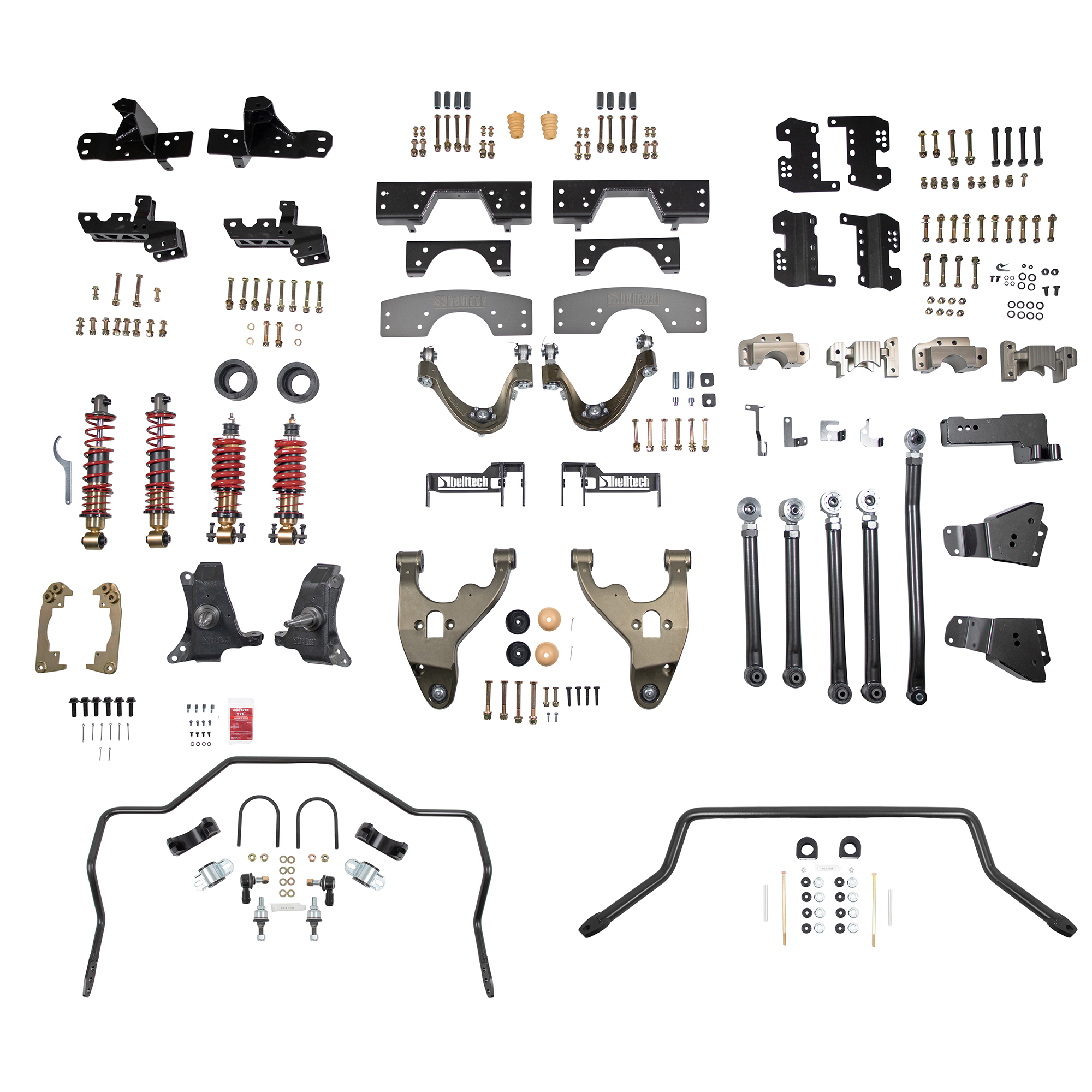

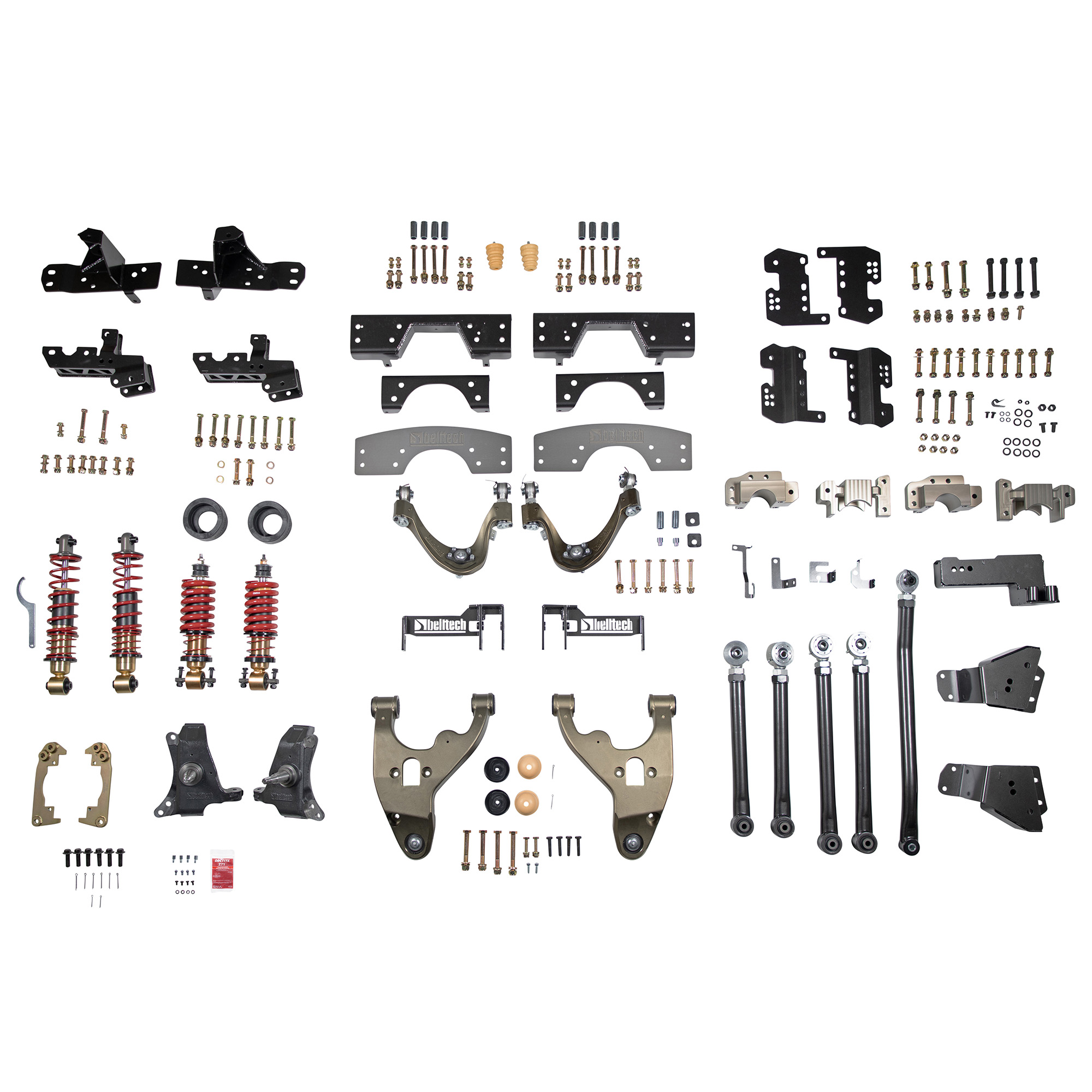

The result: a complete front and rear coilover and 4-link conversion kit for the 1988–1998 C1500 that brings modern performance, ride quality, and adjustability to a classic.
This fully bolt-on system is engineered to deliver the aggressive stance you want along with the handling, comfort, and control you expect. Whether at the track, cruising the street, or handling the daily commute, this setup is built to perform.

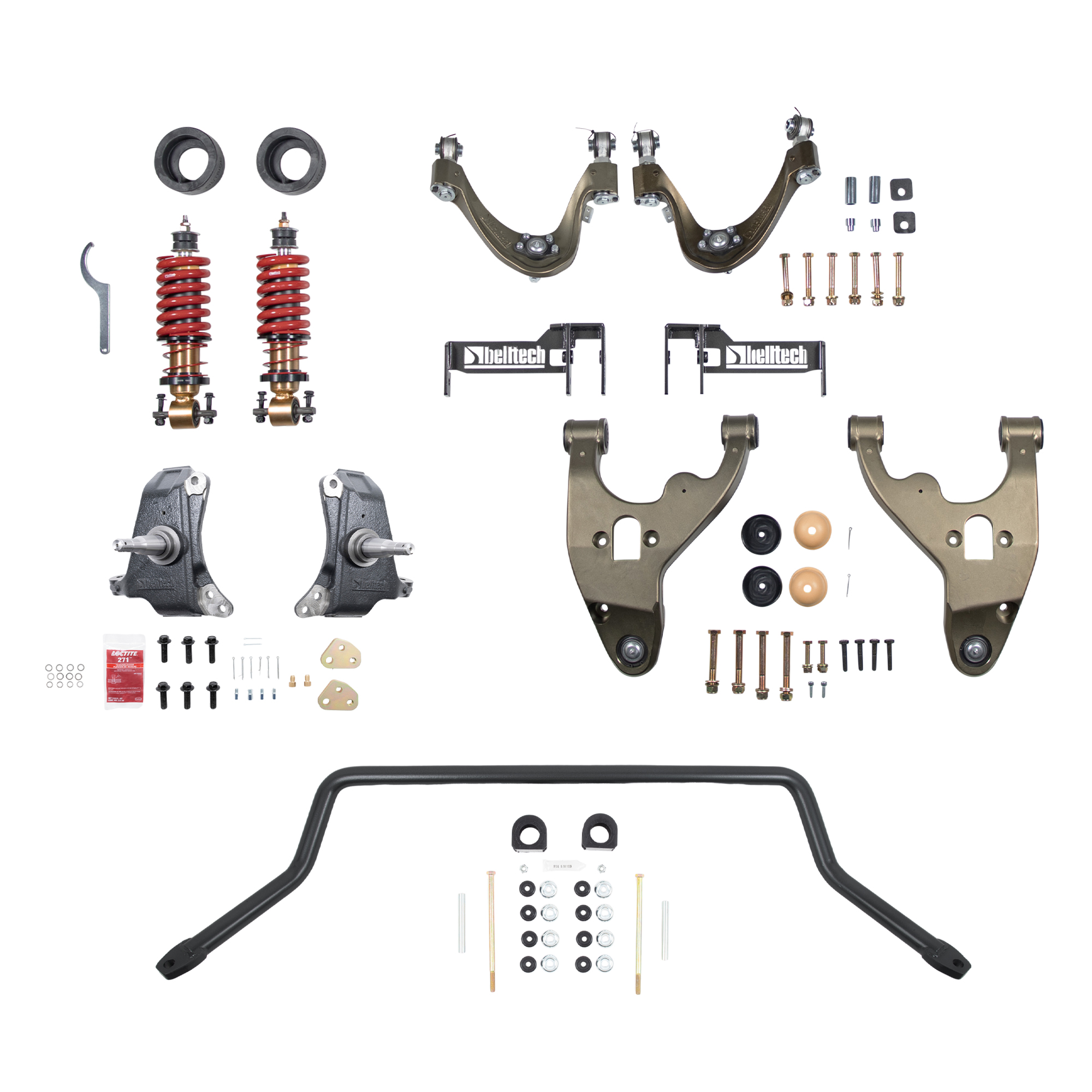

Key Features

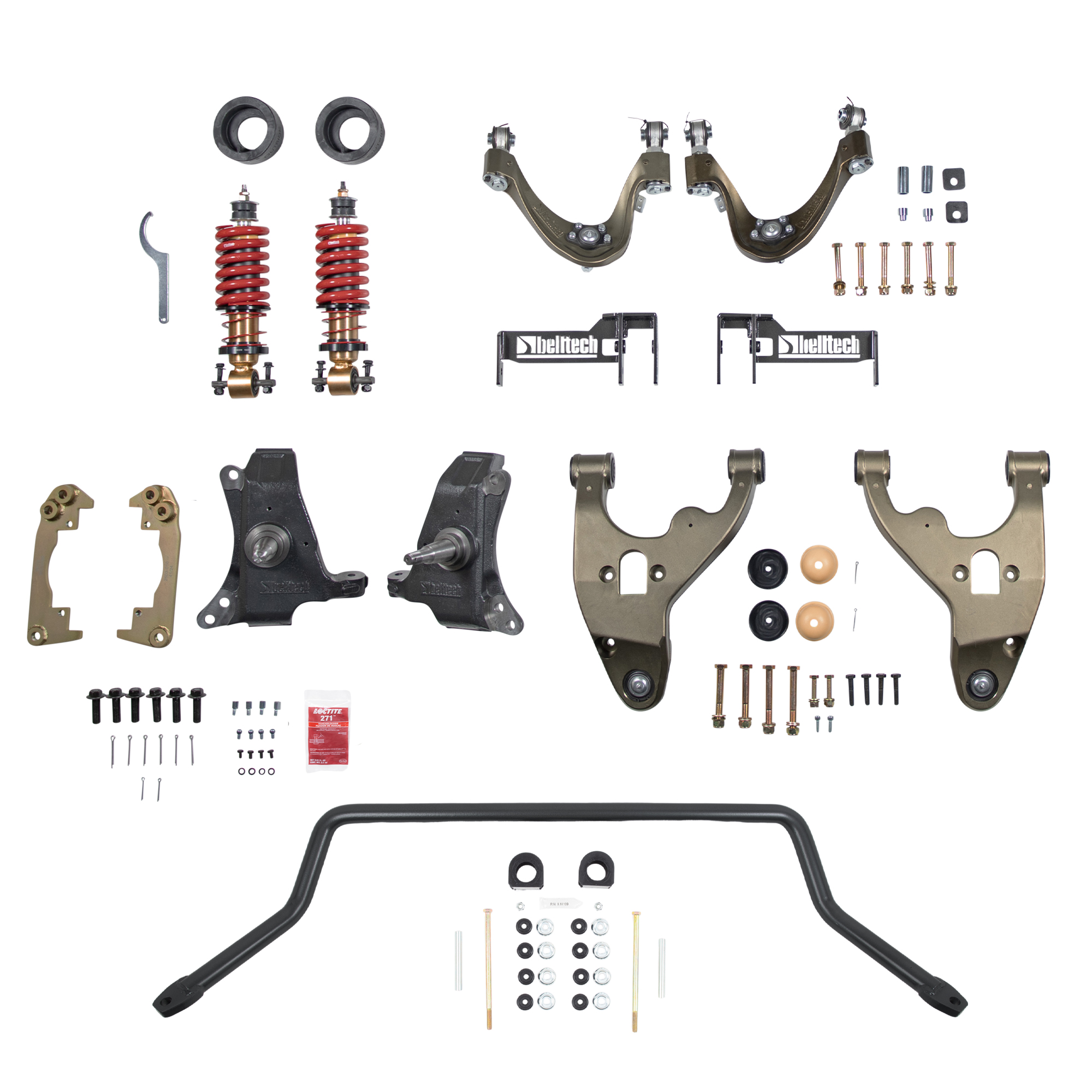

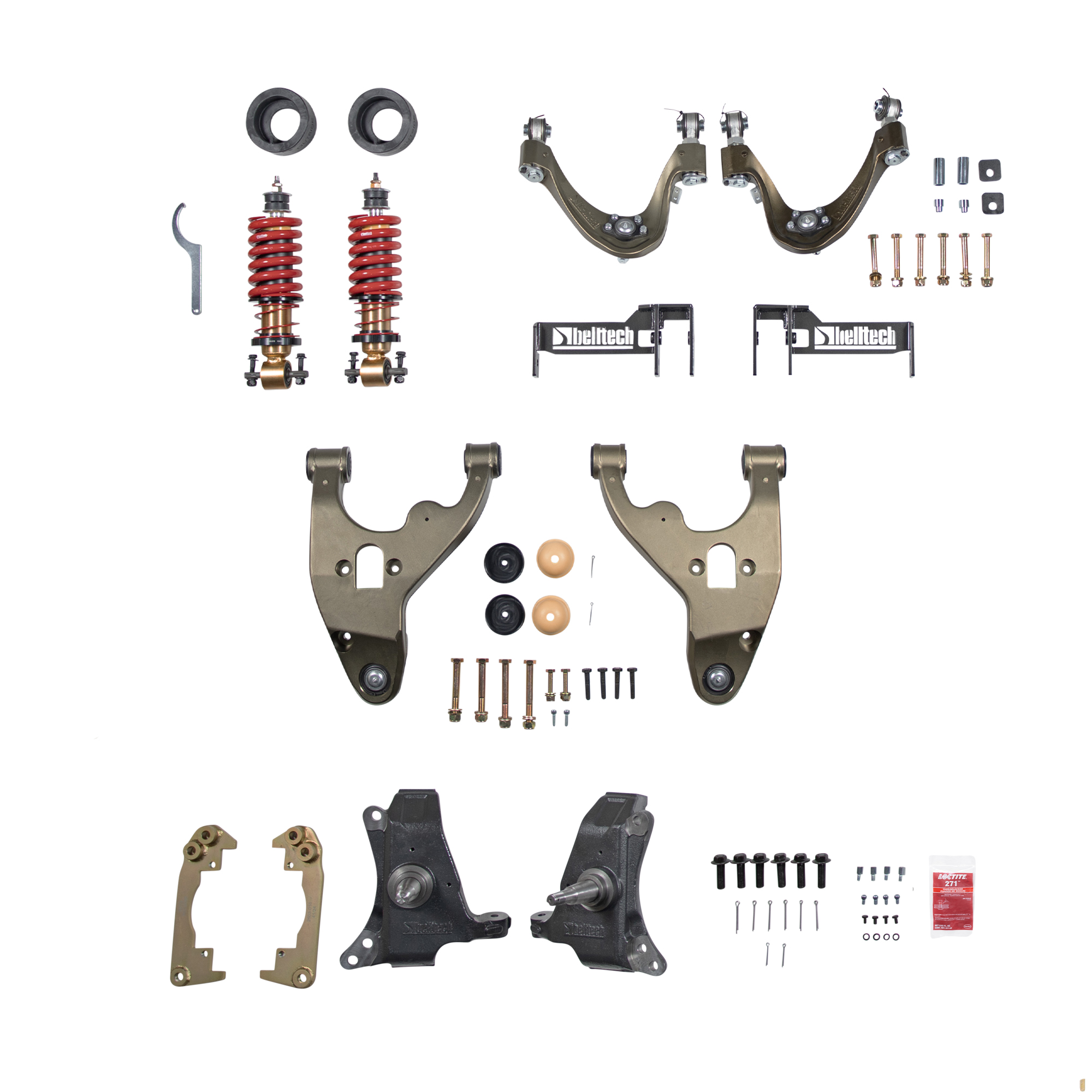

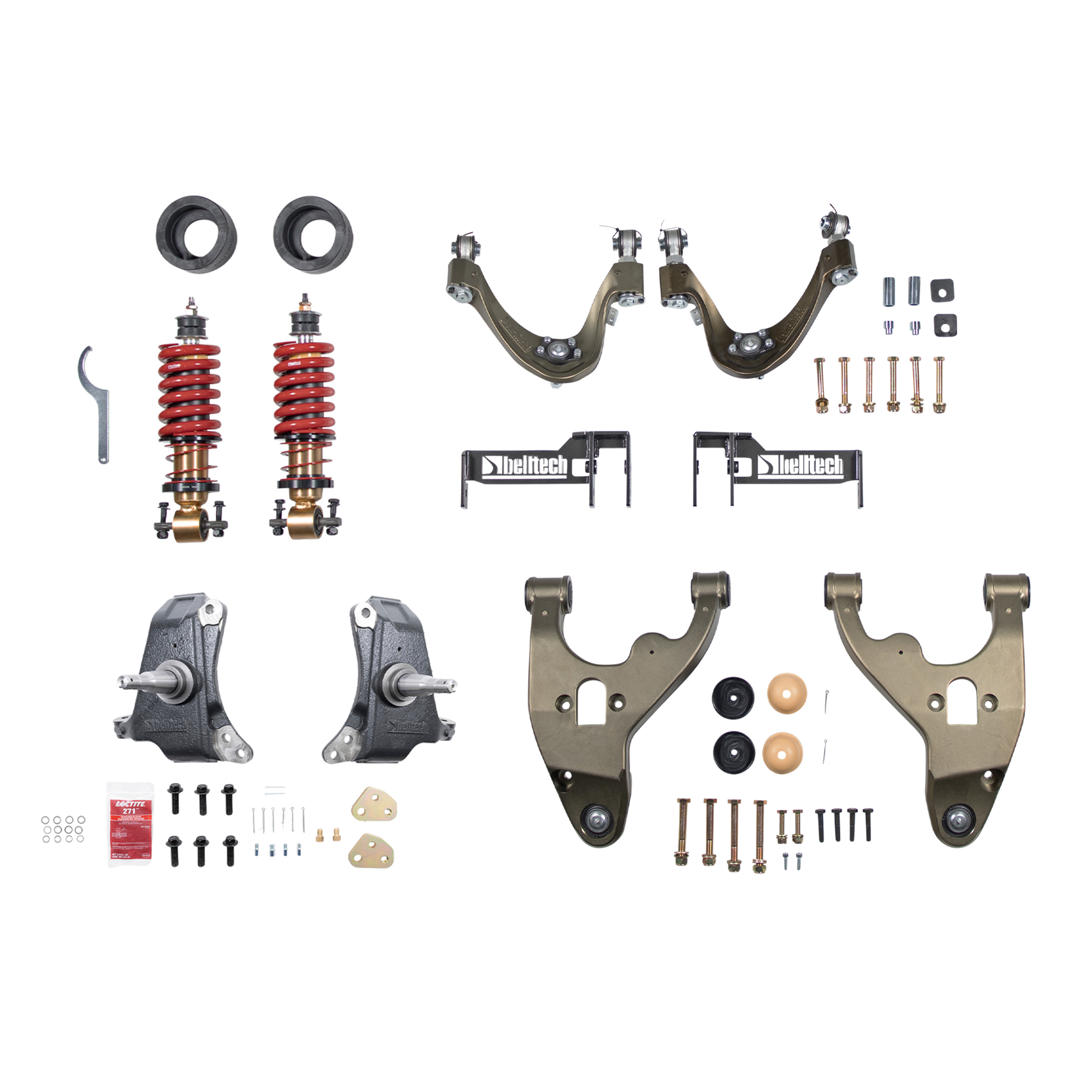

Front Suspension | -3” to -6”

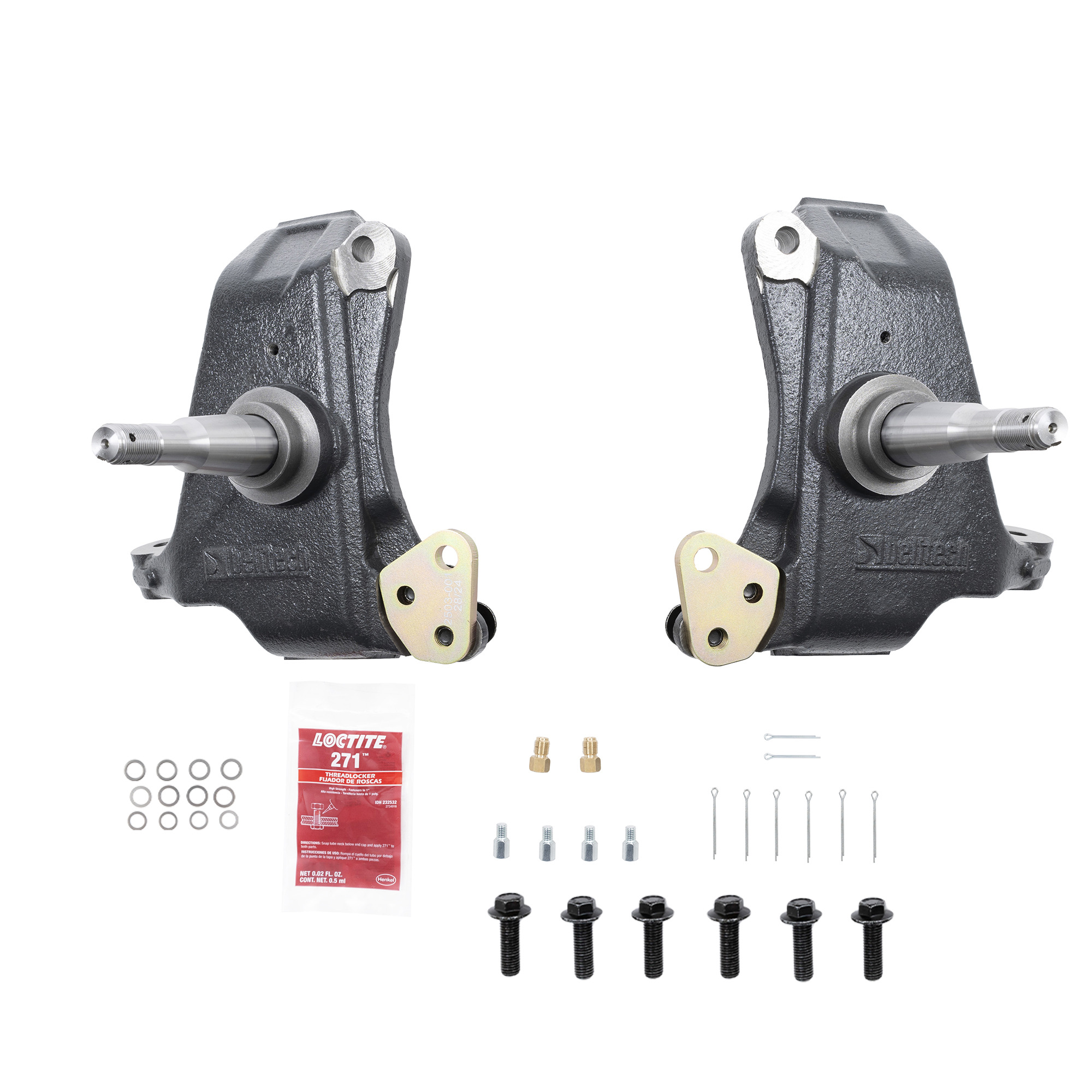

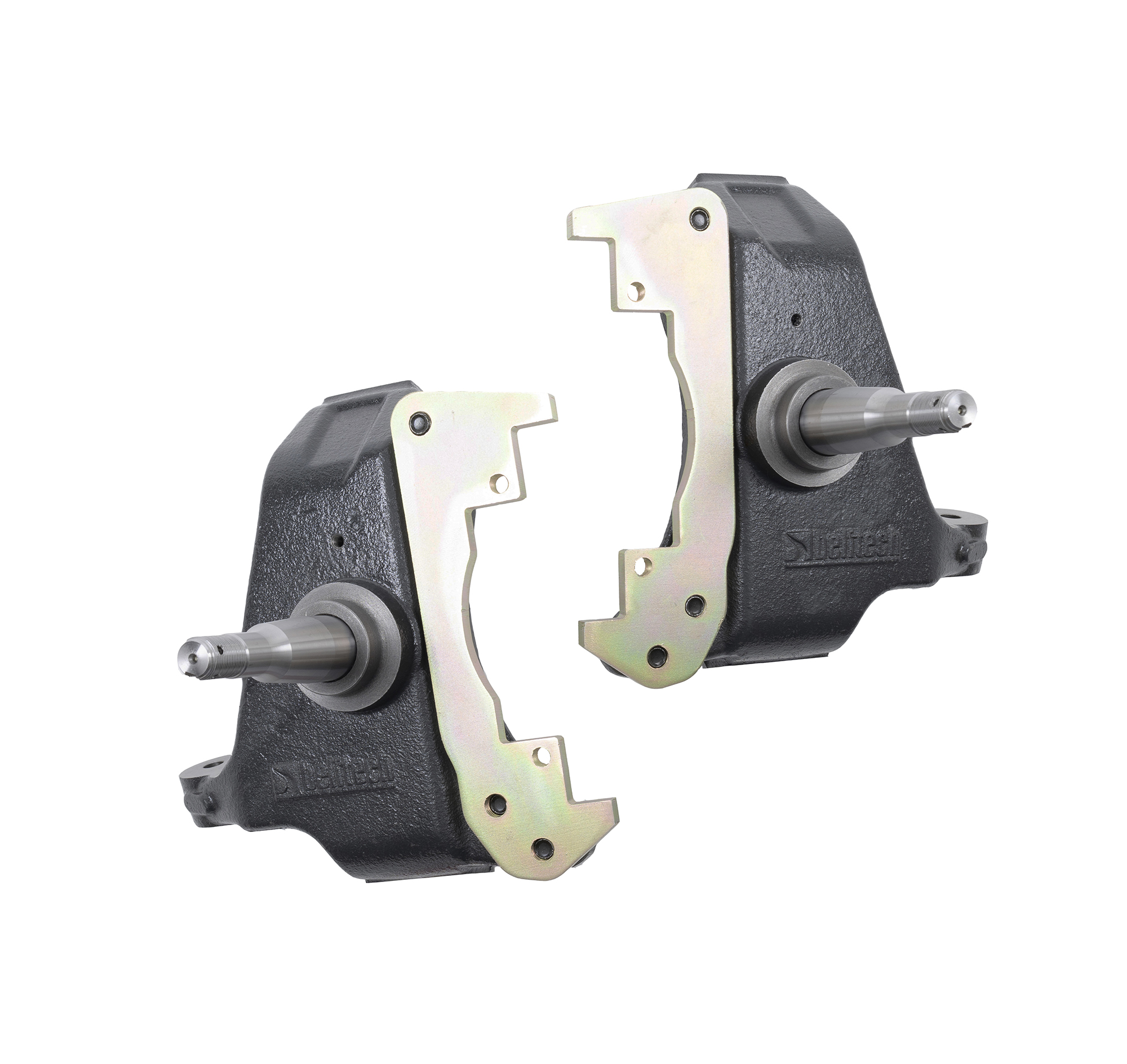

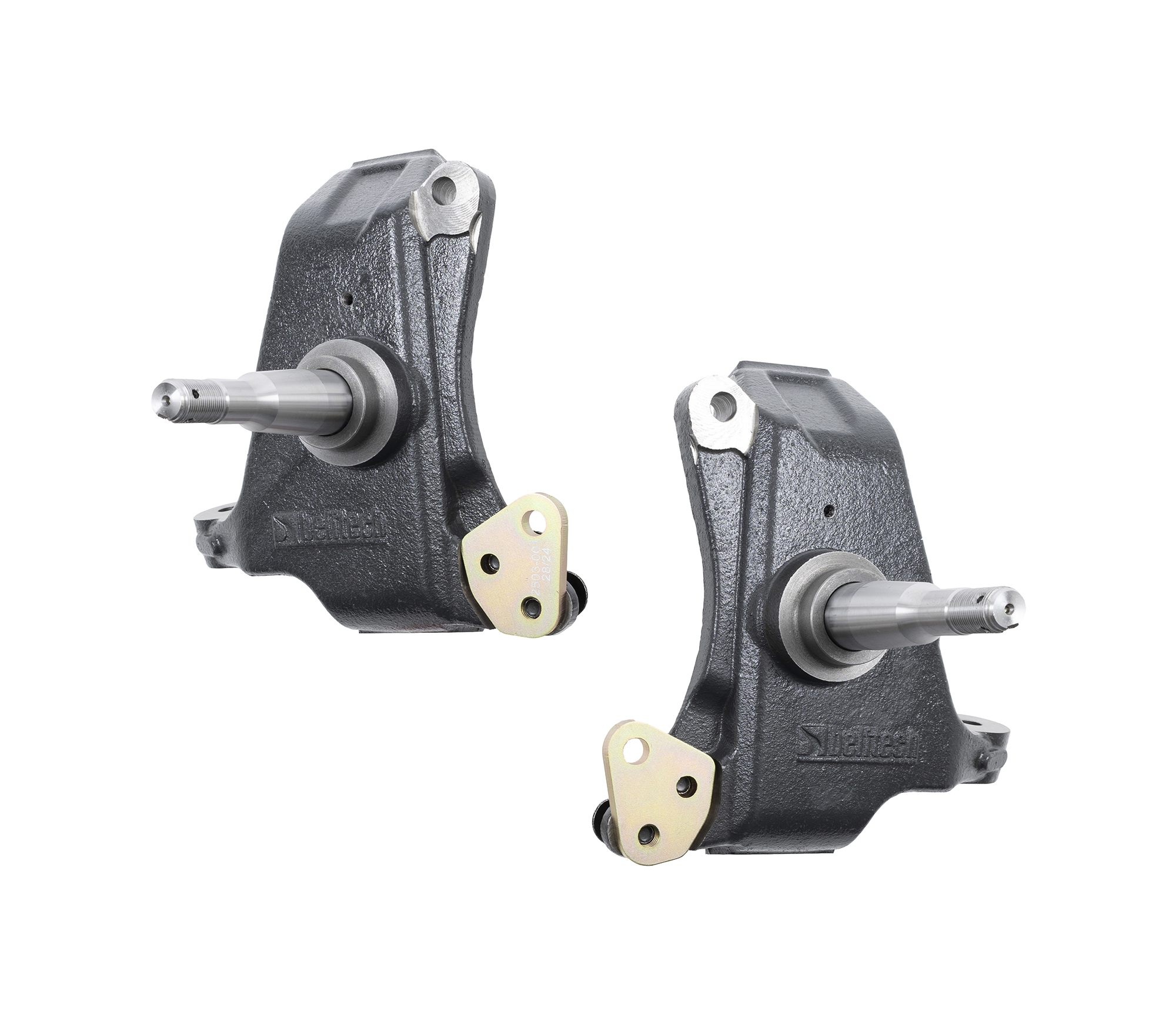

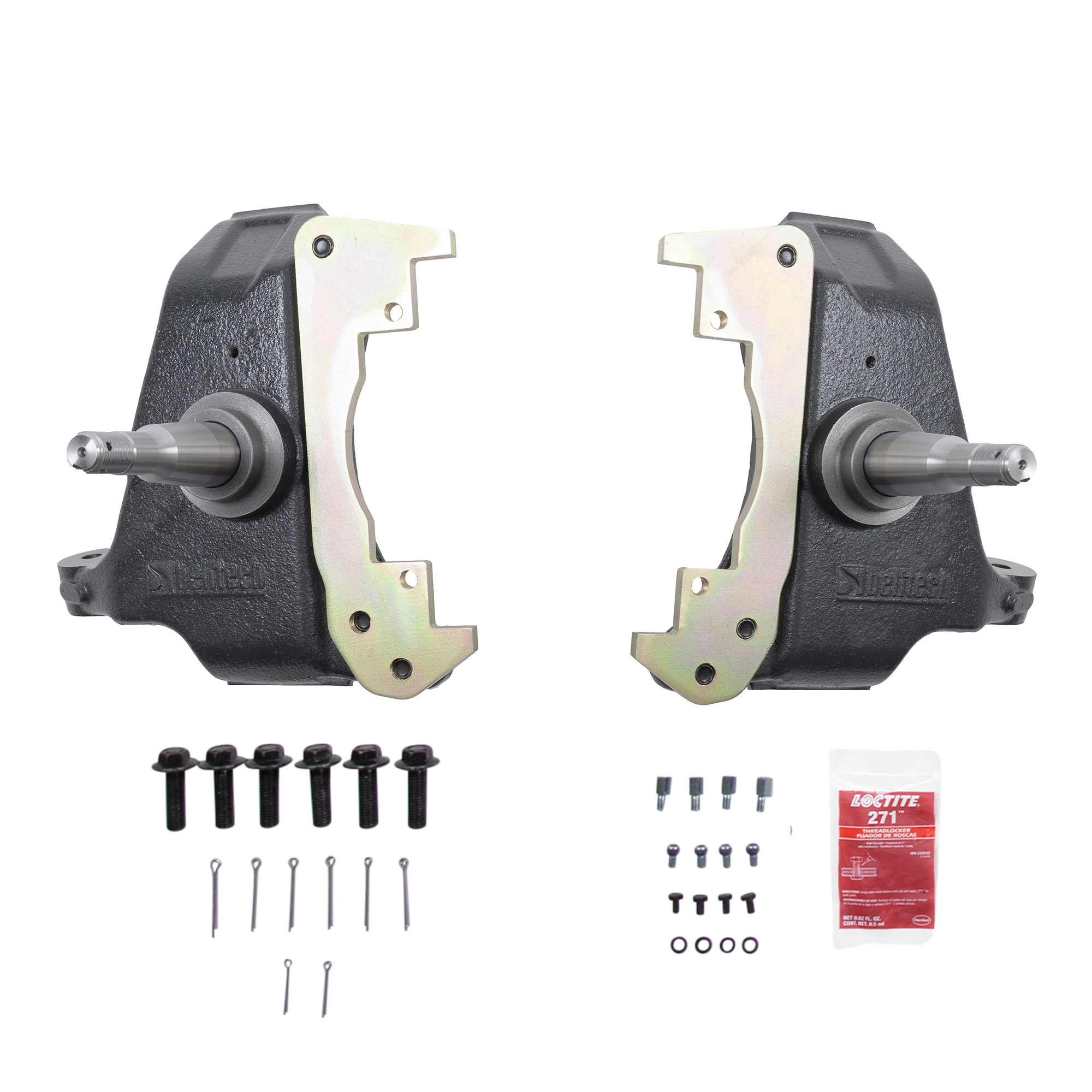

3" Drop Spindles
Description: ⋅ Constructed of ductile Iron ⋅ Maintains factory track width ⋅ Requires 1.25” thick rotor ⋅ Accommodates 18” wheels or larger
2503 Brake Compatibility: Works with the OEM brake setup.
2504 Brake Compatibility: Works with the 2019+ Chevy 1500 OEM 4-piston brake calipers.

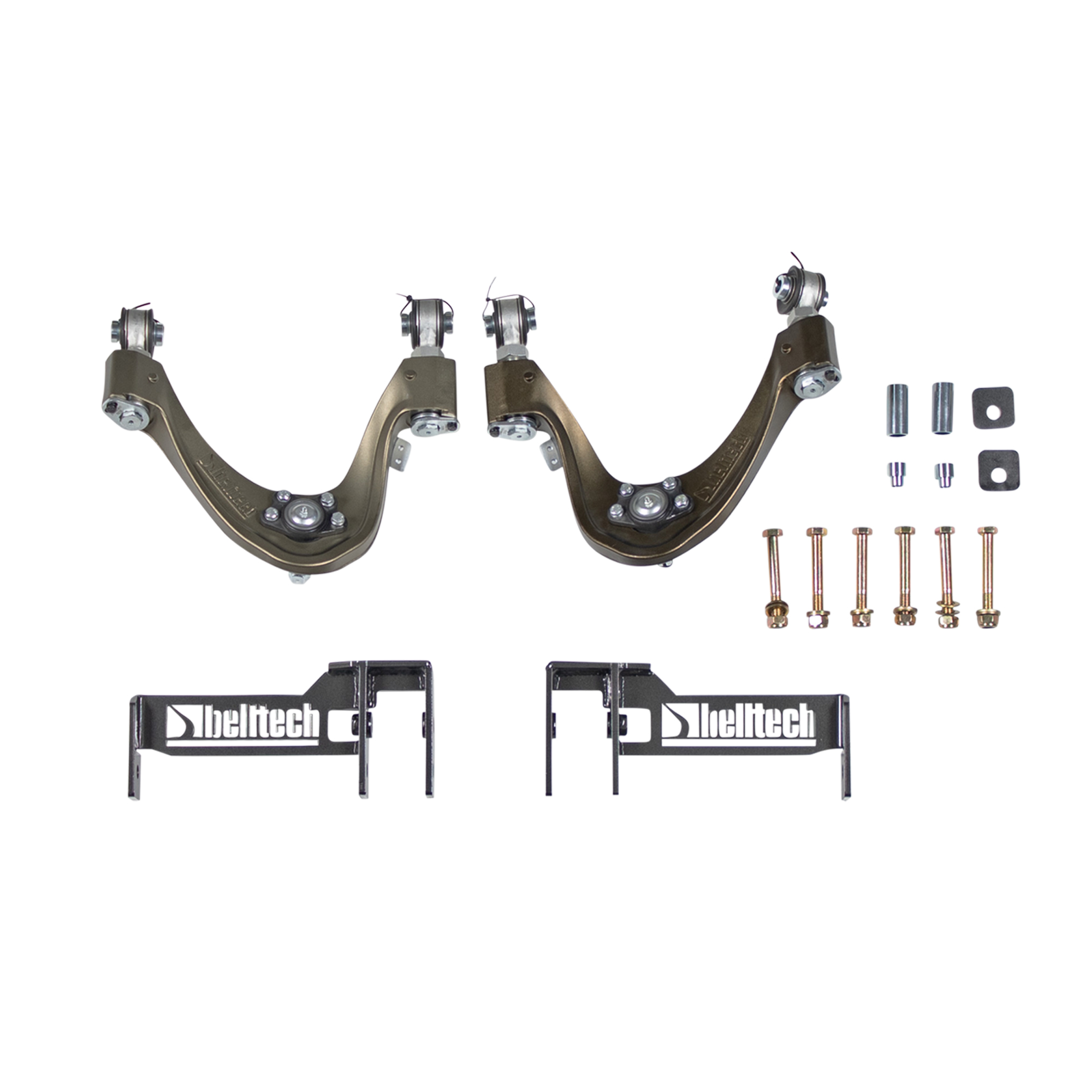

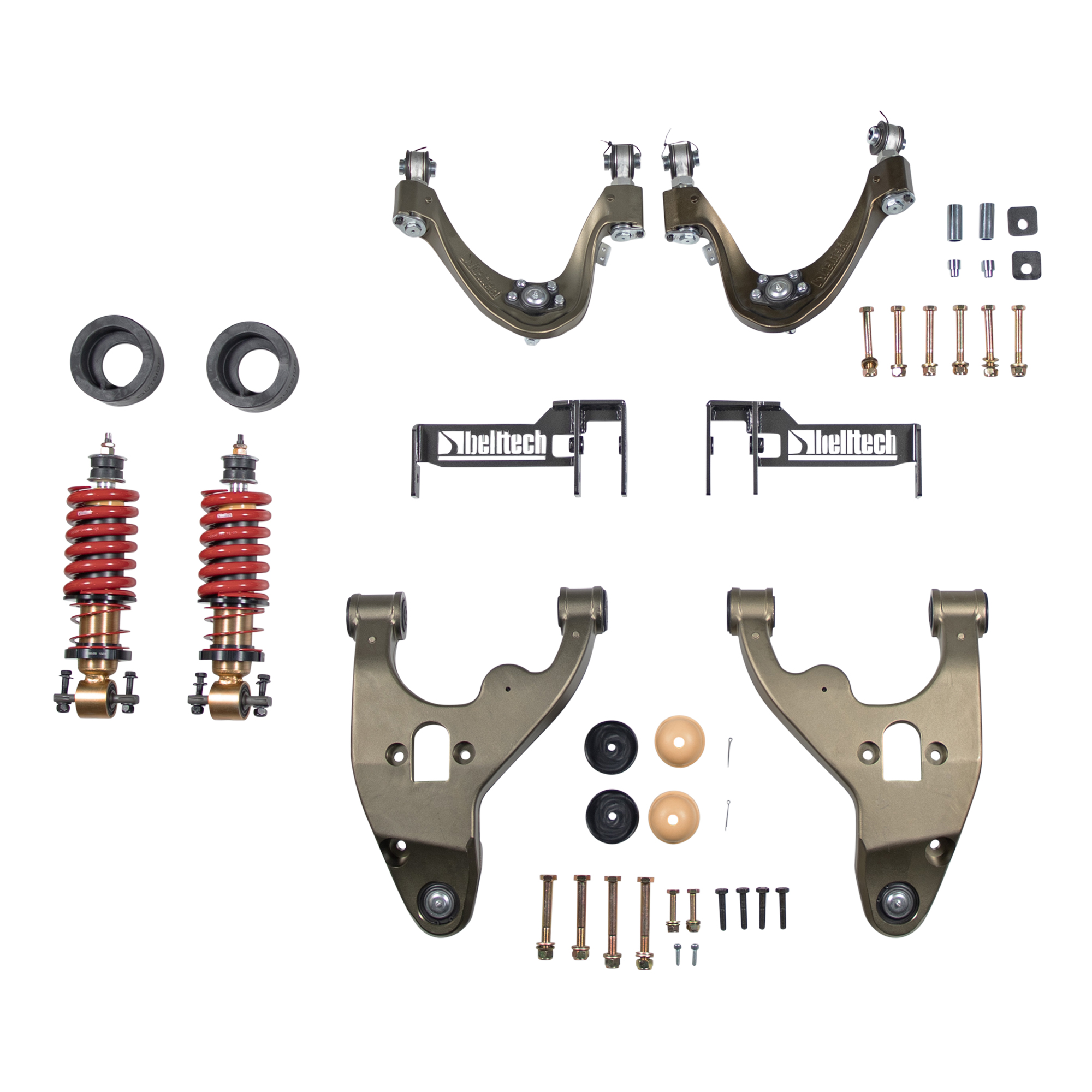

Forged Aluminum Upper Control Arm + Mounting Bracket
- Constructed of forged aluminum
- 3 degrees of built-in caster
- 3 degrees of on-vehicle camber adjustment
- Upper control arm bracket raises the pivot point to increase anti-dive, improves roll center and reinforces the upper control arm mount
- Compatible with OEM ball joints

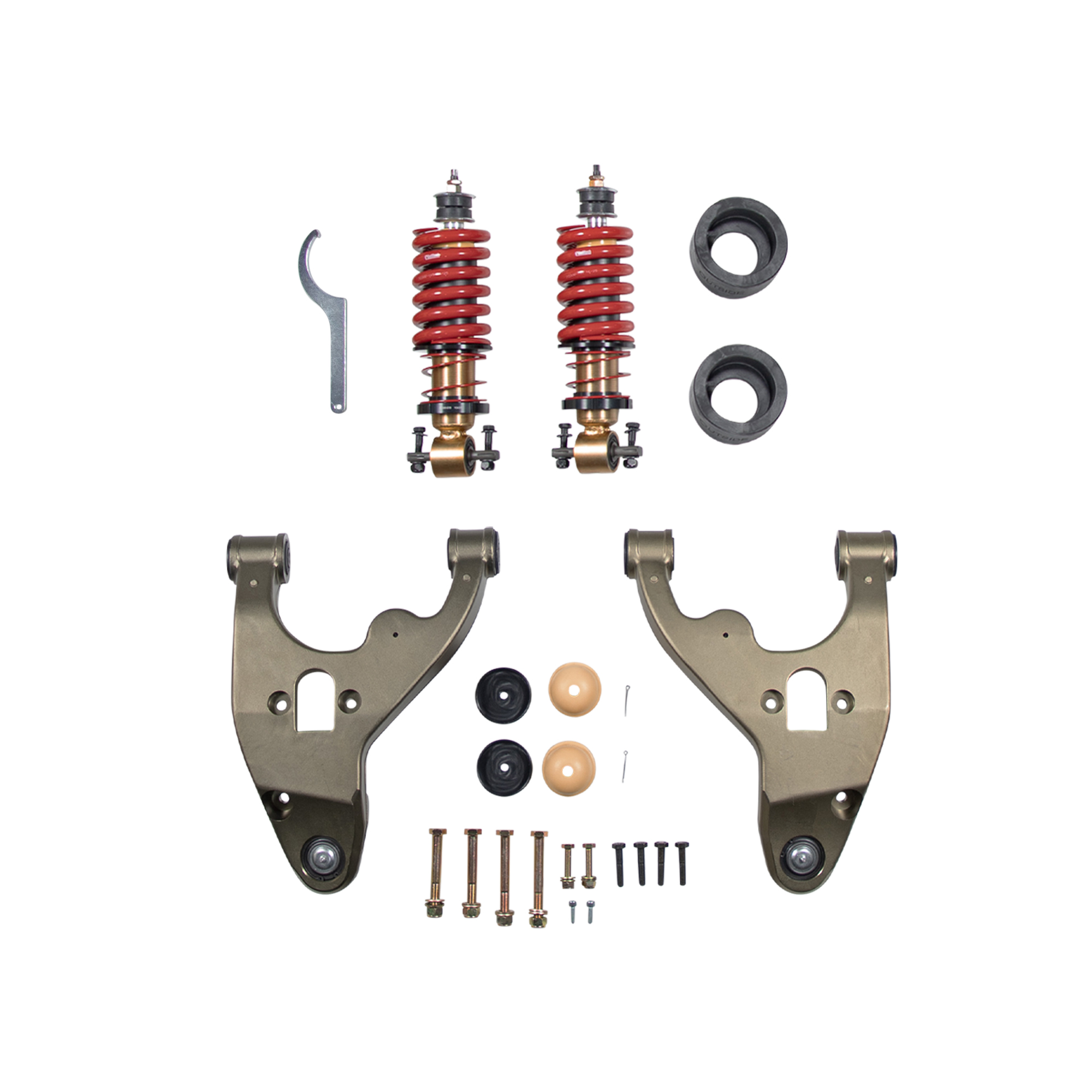

Forged Aluminum Lower Control Arm + Coilover Assembly
- Coilover and forged aluminum LCA sold as a matched unit for optimal performance
- Integrated microcellular elastomer foam bump stops
- Lowering range (-1.5” to -3.5” drop)
- Composite upper spring adapter for proper spring alignment
- Low Friction, triple wall, vulcanized rubber lower bushing
- Front sport tuned spring rates for enhanced control
- Aluminum spring perch
- Galvanized Housing

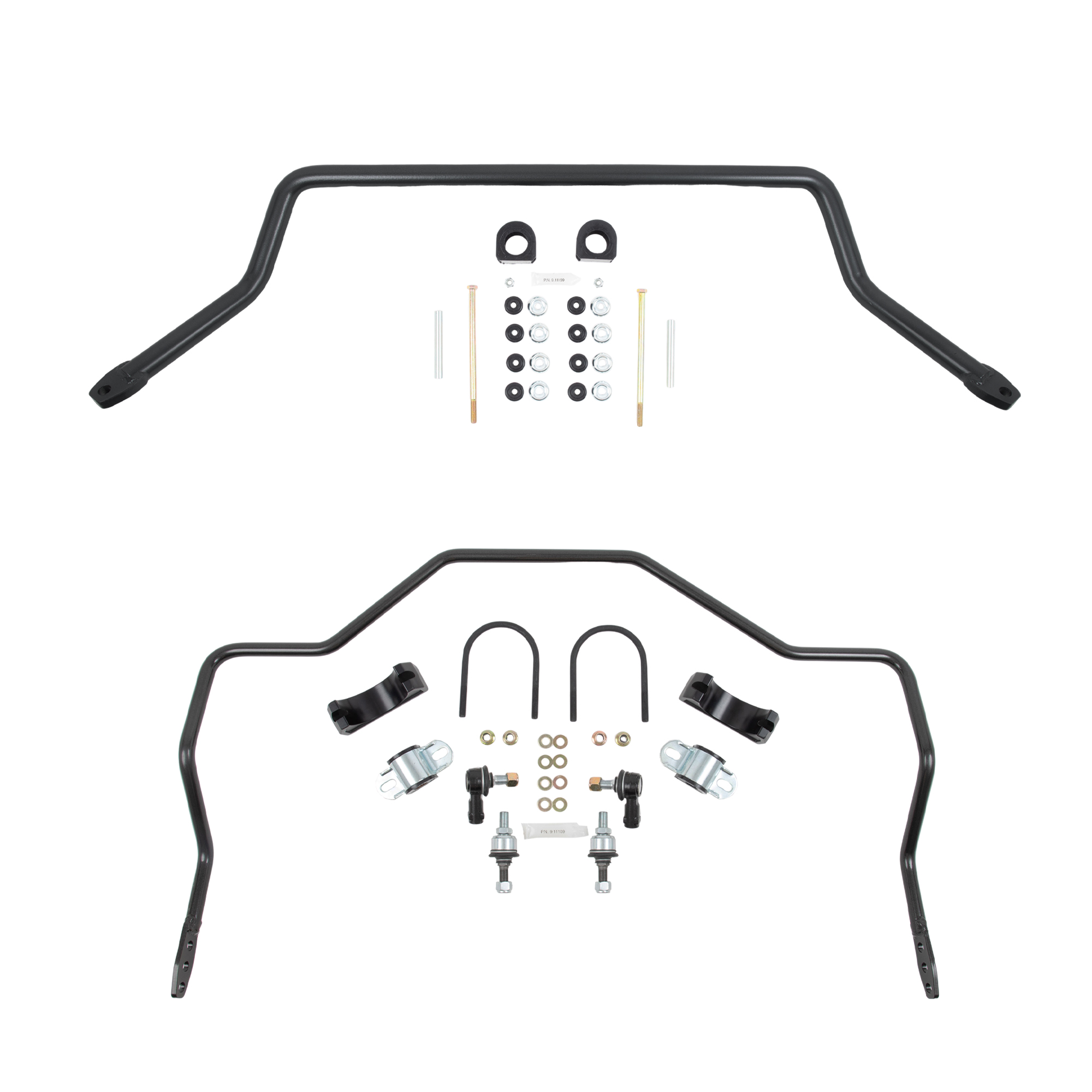

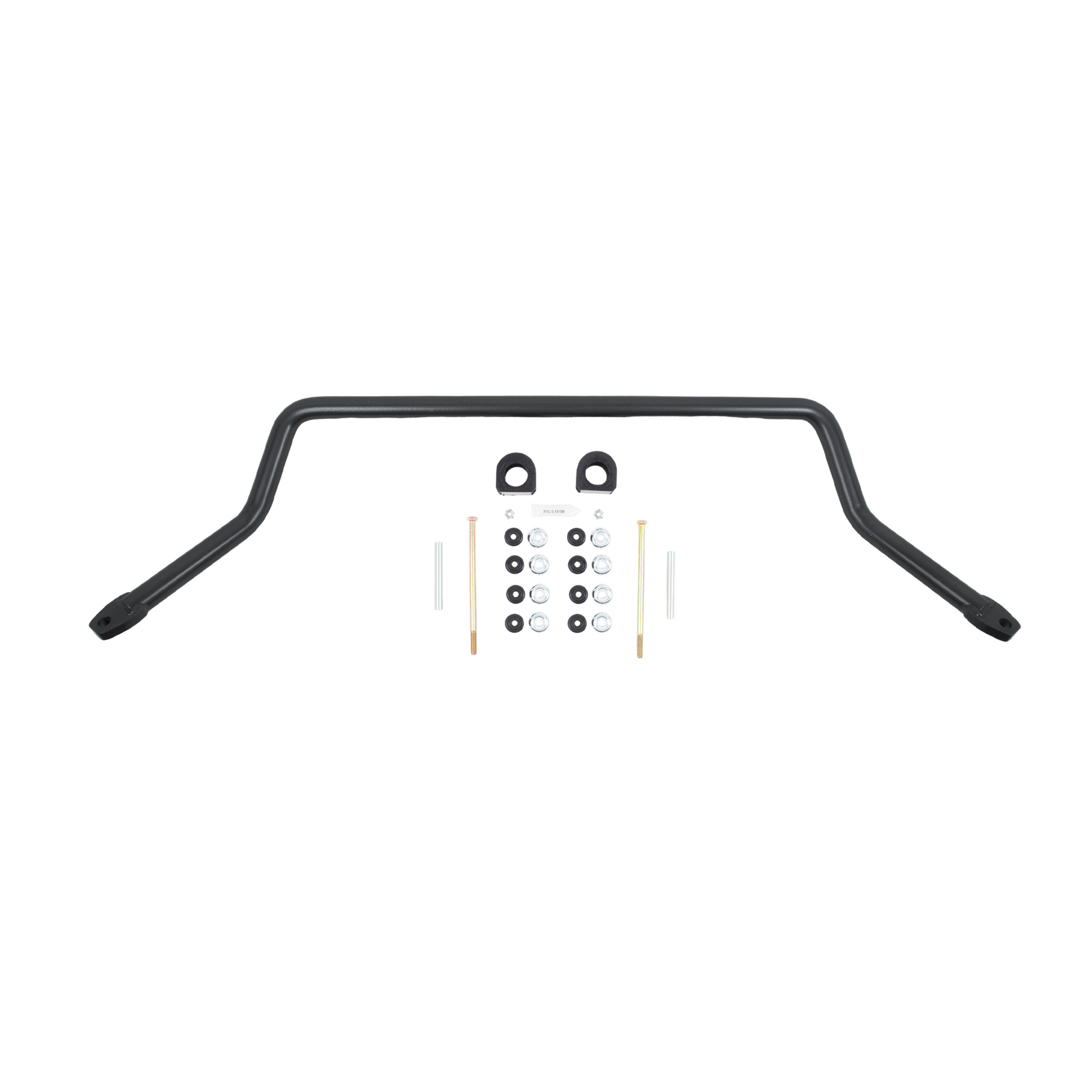

Front Sway Bar
- 1-3/8” solid bar
- Made from cold-formed steel
- Powder-coated for longevity
- Includes high-quality mounting hardware

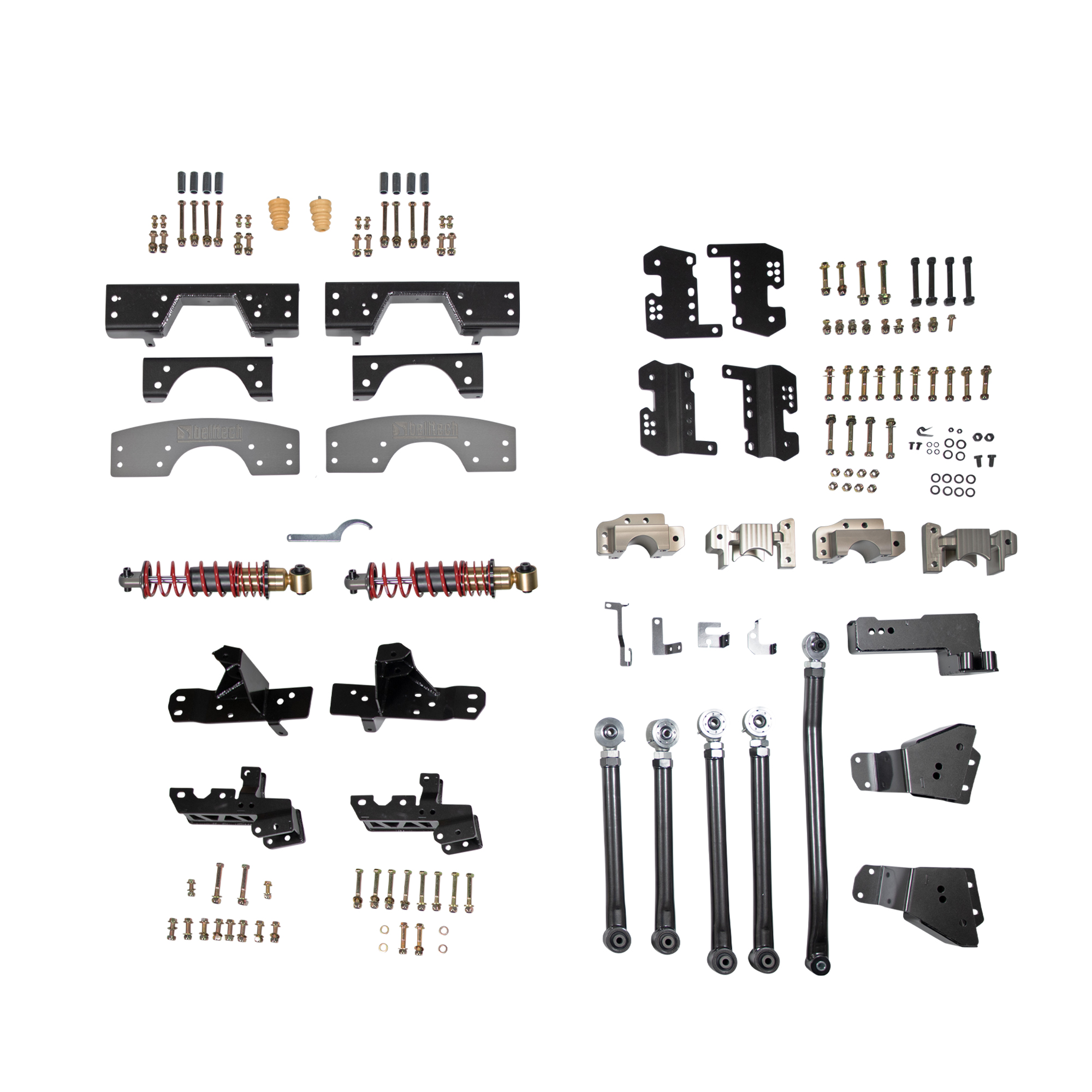

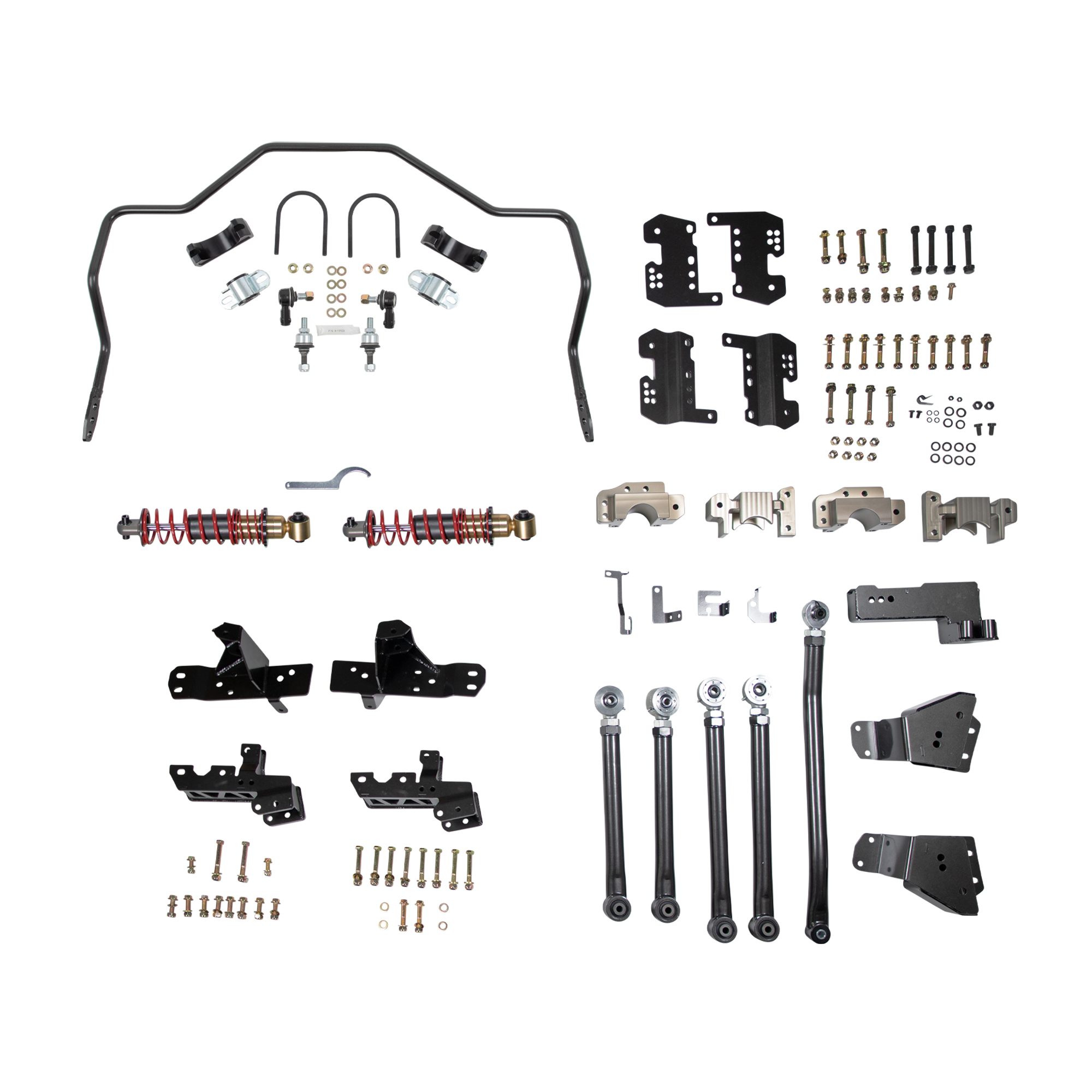

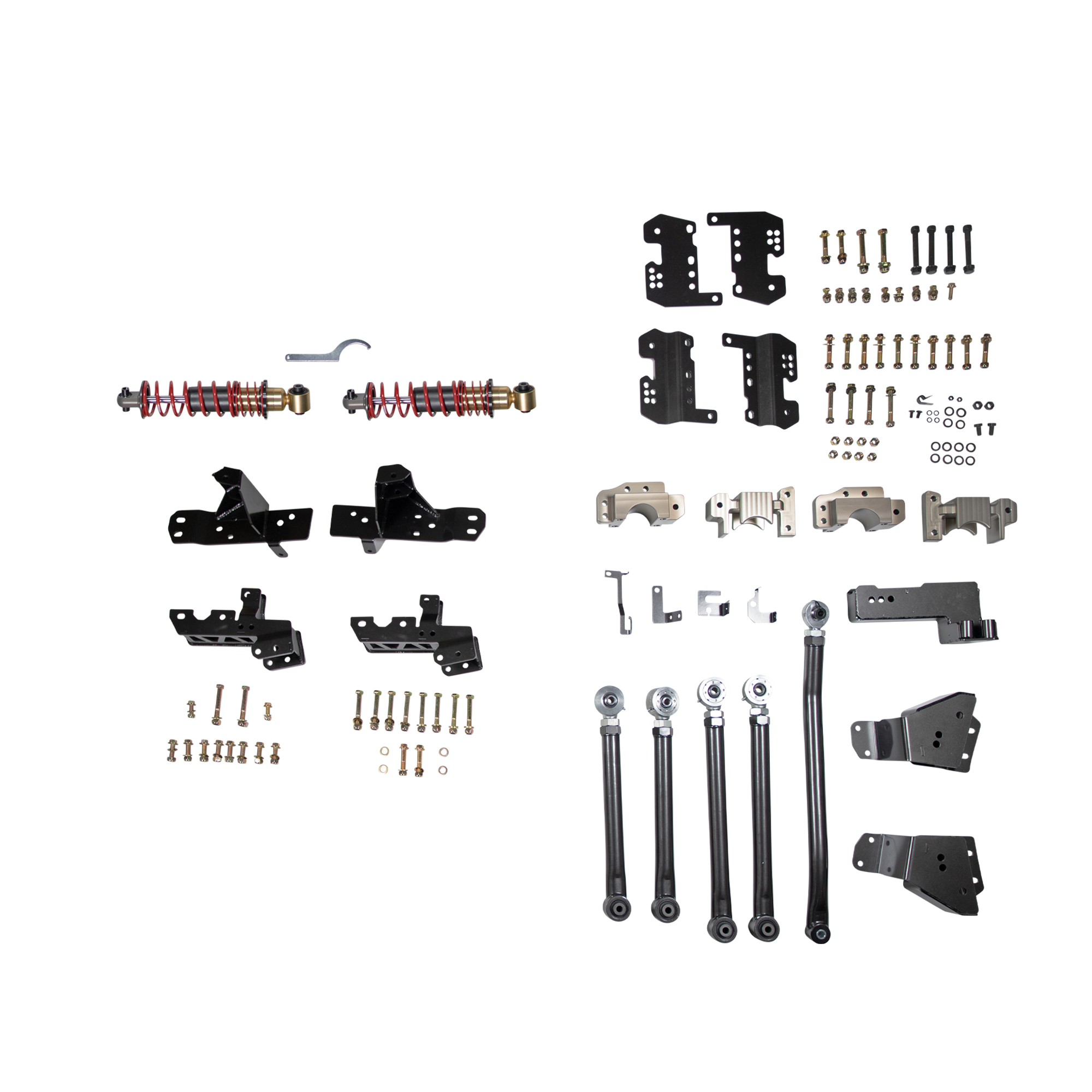

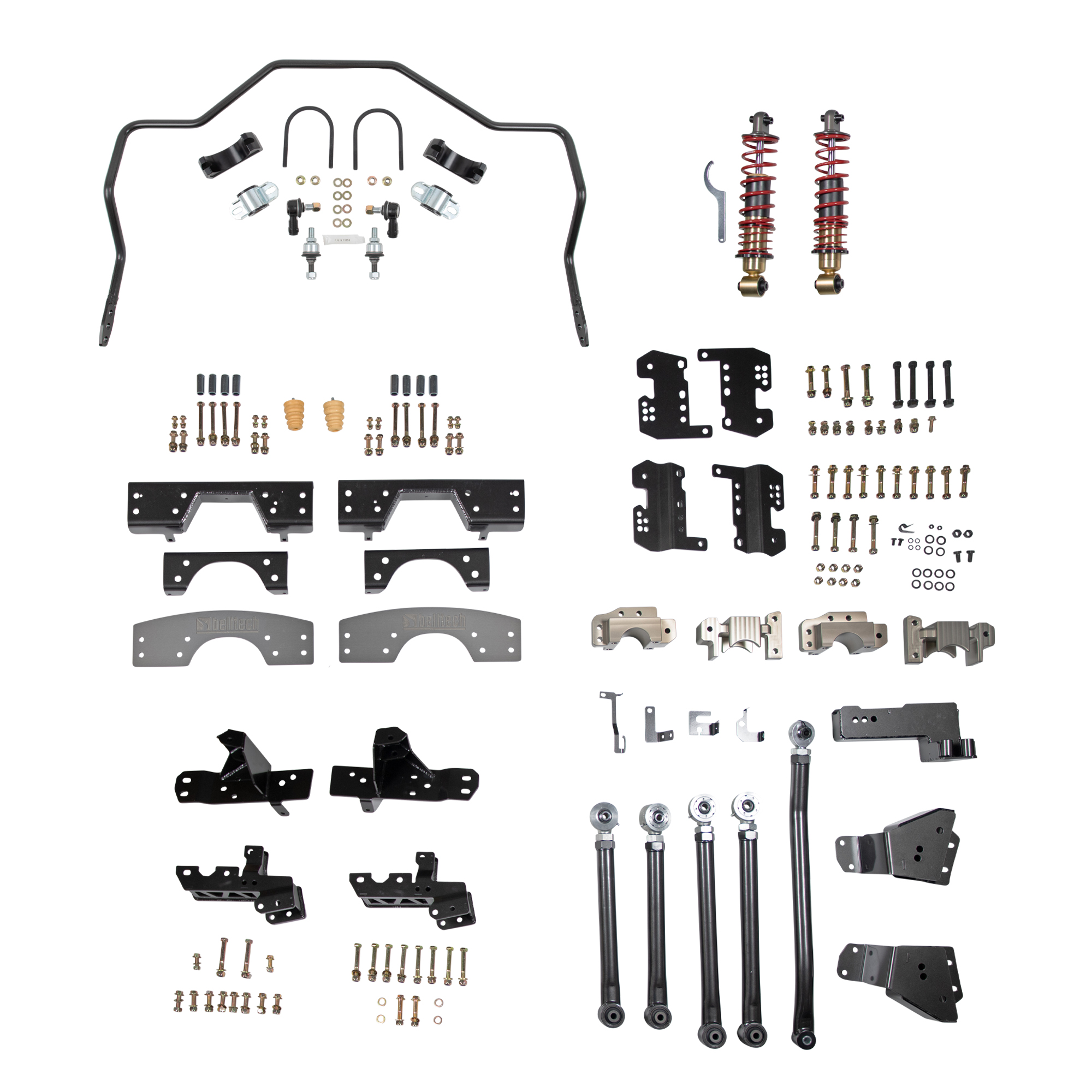

Rear Suspension | -4” to -7”
Rear Coilovers
- 60mm (2.36”) galvanized steel housing
- Powder-coated high-tensile springs with sport-tuned rates
- Progressive-rate polymer foam bump stops
- Spherical bearing upper mount
- Aluminum spring perch
- Low Friction, triple wall, vulcanized rubber lower bushing
4-Link System
- Adjustable 4-link arms to control pinion angle
- Constructed from 2” x ¼” A36 steel
- Powder coated in black metallic
- Hard anodized 4-link axle clamps
- Anti-squat adjustable in increments with a range of 80%–100%
- Includes rebuildable, greaseable rod ends for long-term durability
- Low Friction, triple wall, vulcanized rubber lower bushing on chassis side
Track Bar
- Built from 2” x ¼” A36 steel
- Adjustable to maintain axle offset and roll resistance
- Powder coated in black metallic
- Equipped with low-friction, triple-wall vulcanized rubber bushings
- Includes rebuildable, greaseable rod ends for durability and articulation

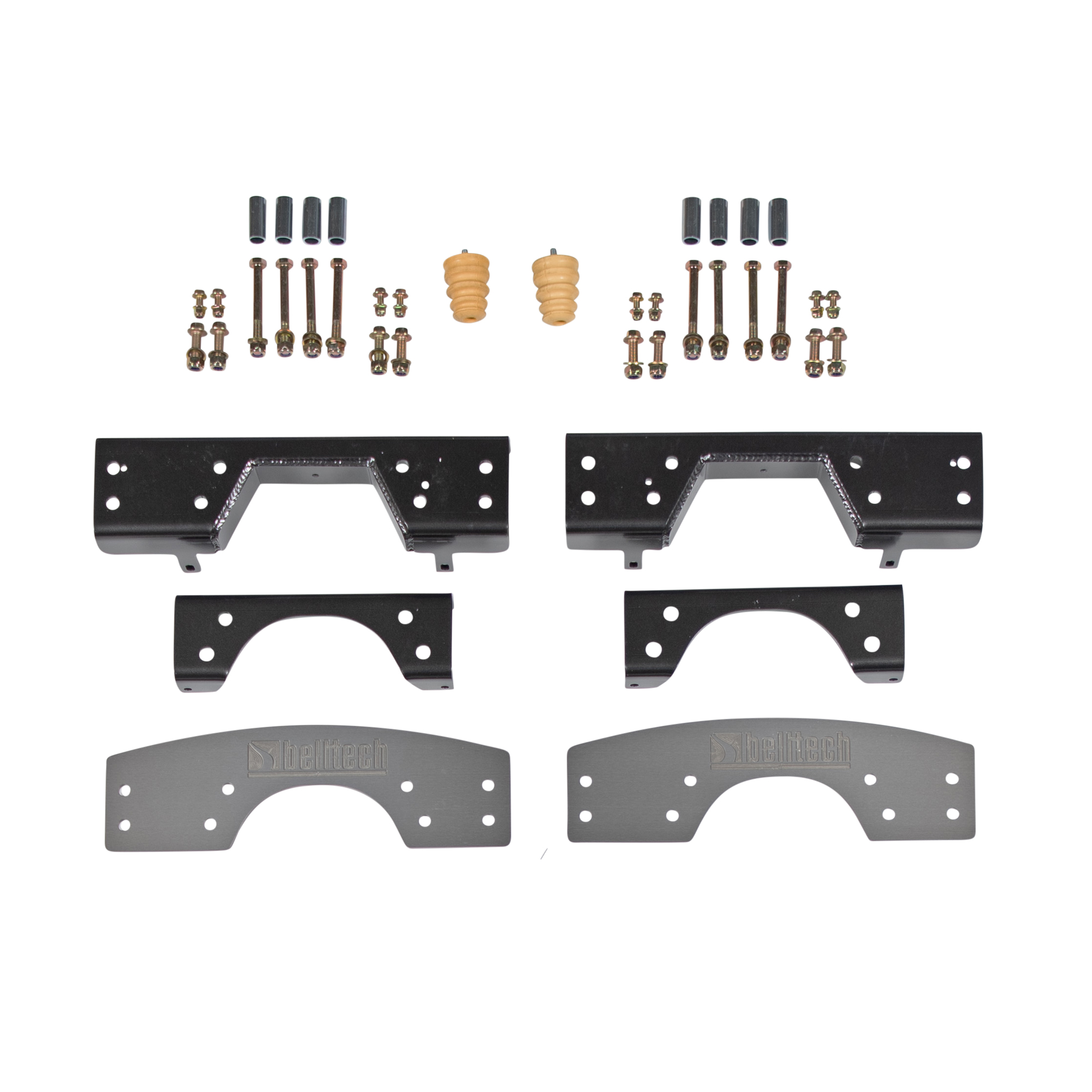

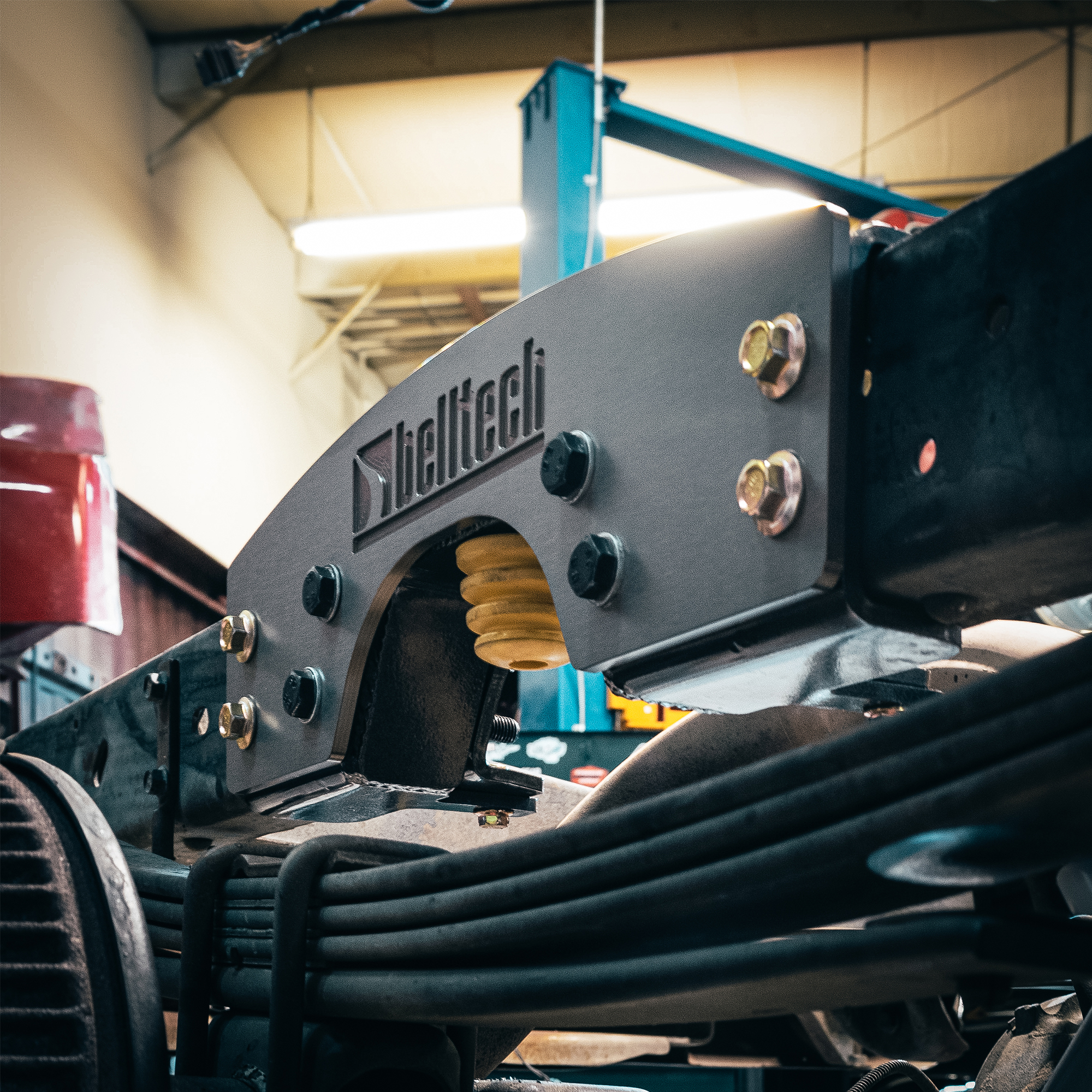

Super C-Notch
- Increased suspension travel
- Boxed frame design adds strength and rigidity
- Includes 3/8” thick hard-anodized aluminum arch support
- Integrated foam overload bump stops

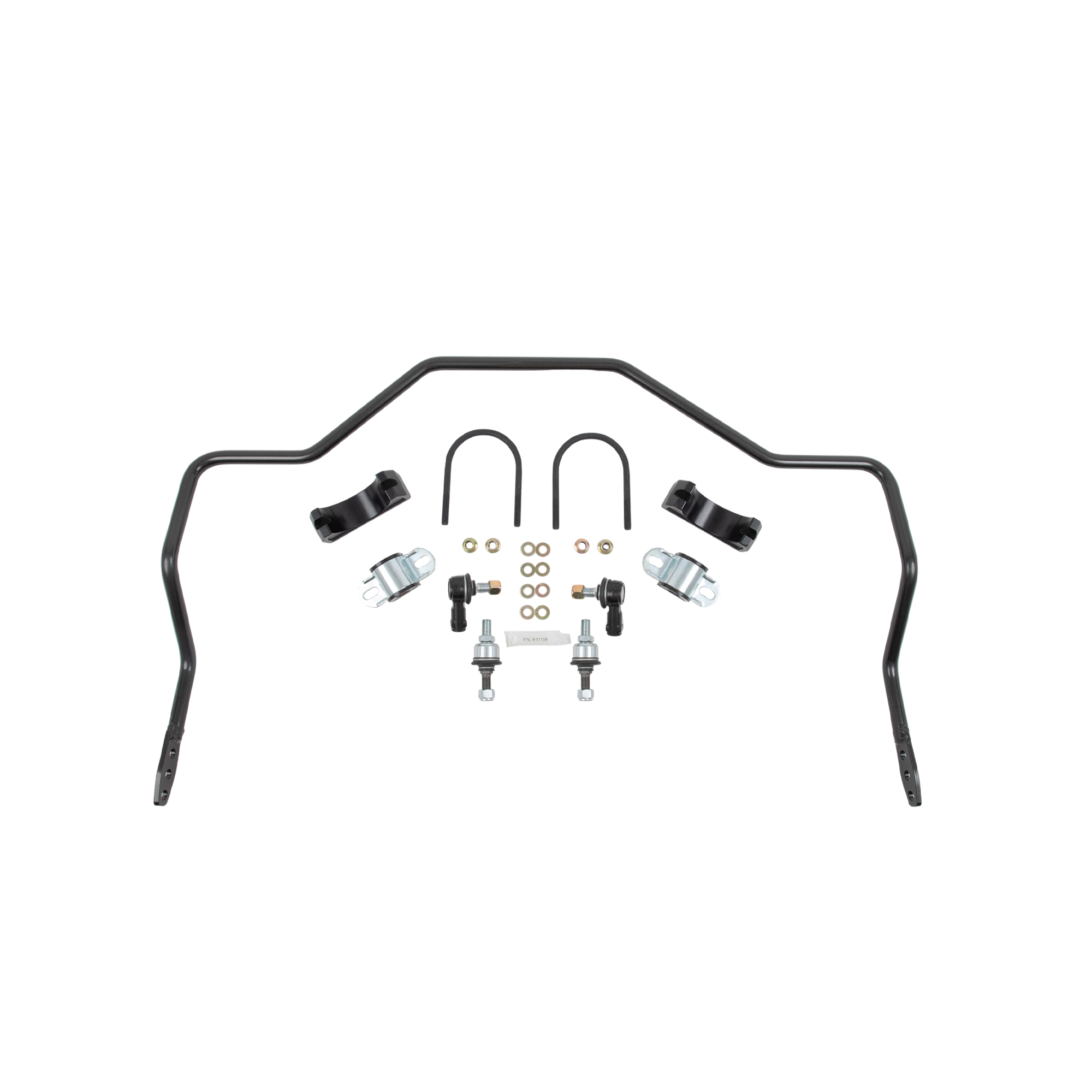

Rear Sway Bar
- ¾” (19mm) solid bar
- 3-hole adjustable
- Made from cold-formed steel and powder-coated for longevity
- Adjustable sealed end links
- Forged aluminum axle clamps
- Includes Class 10.9 mounting hardware
This new Belltech system takes the iconic OBS platform into the modern era with enhanced geometry, adjustability, and performance without sacrificing ride quality or bolt-on simplicity.
